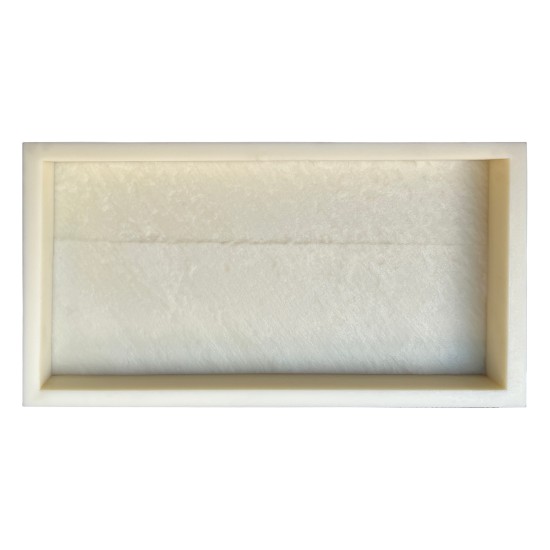

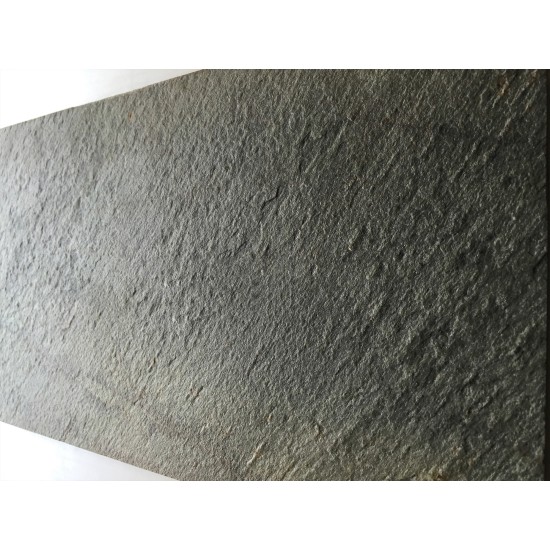

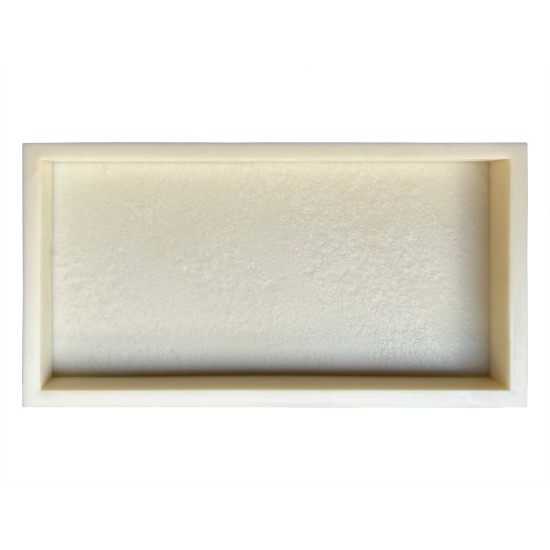

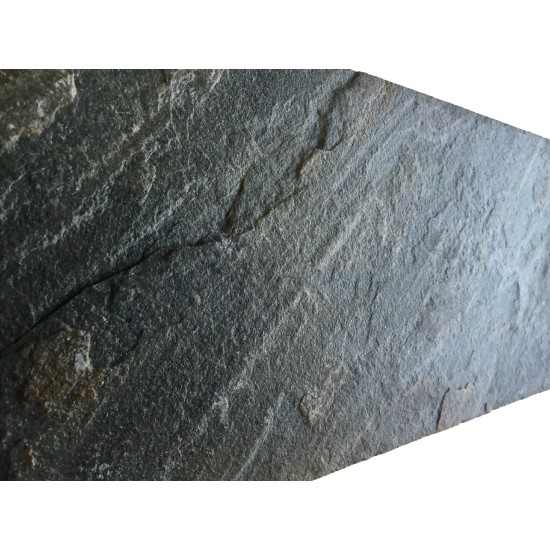

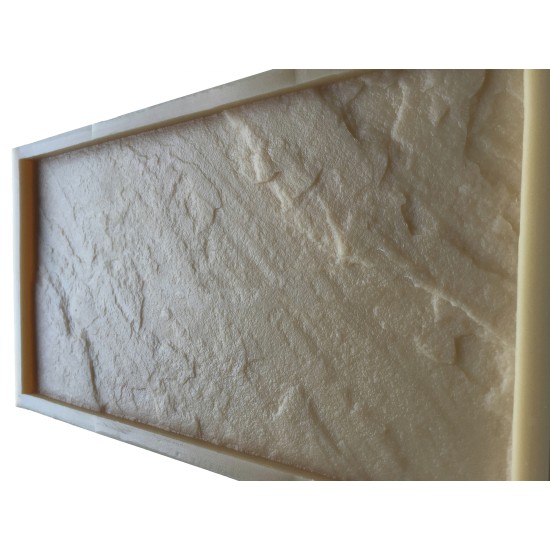

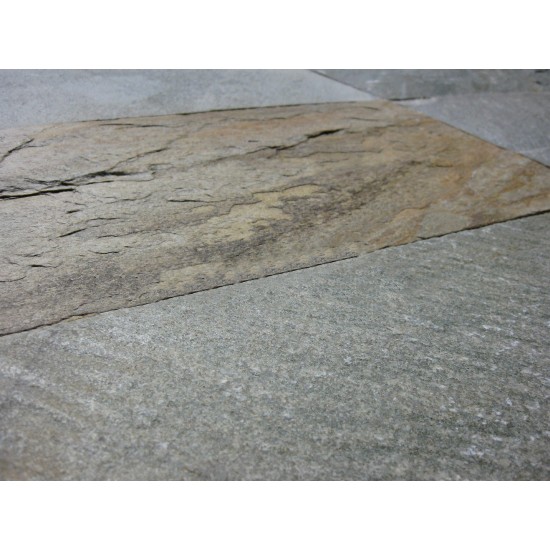

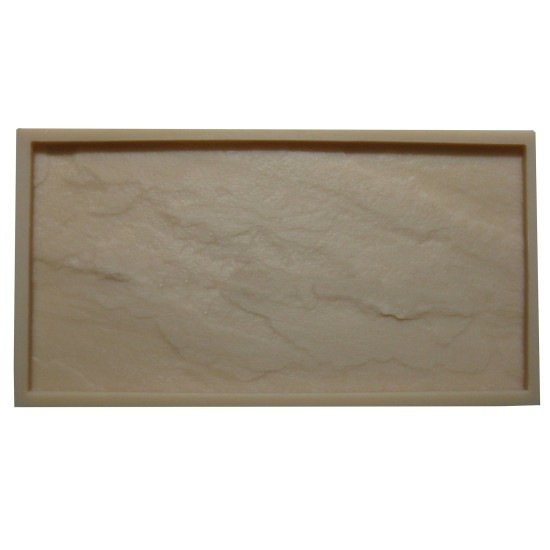

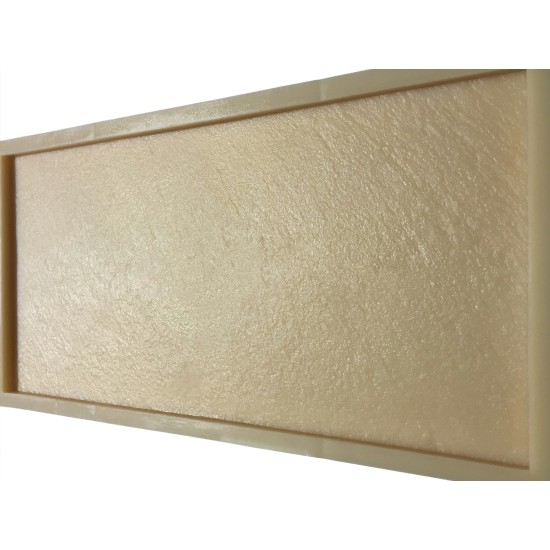

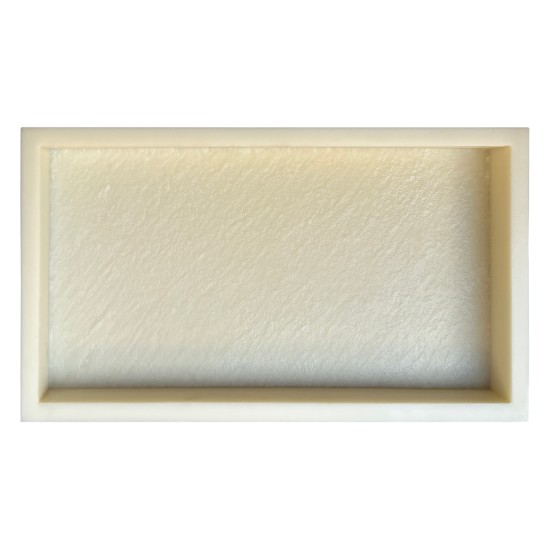

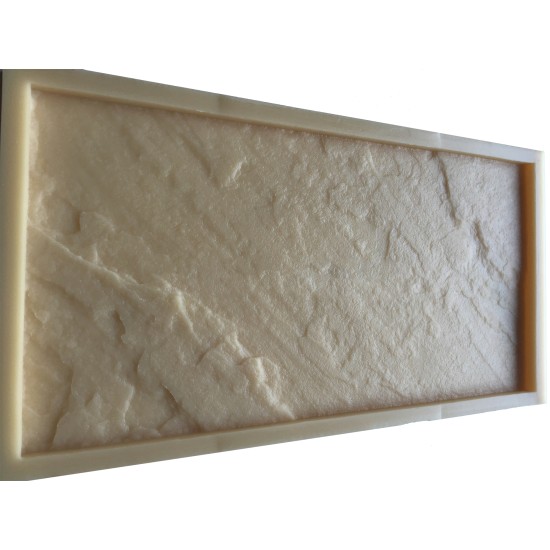

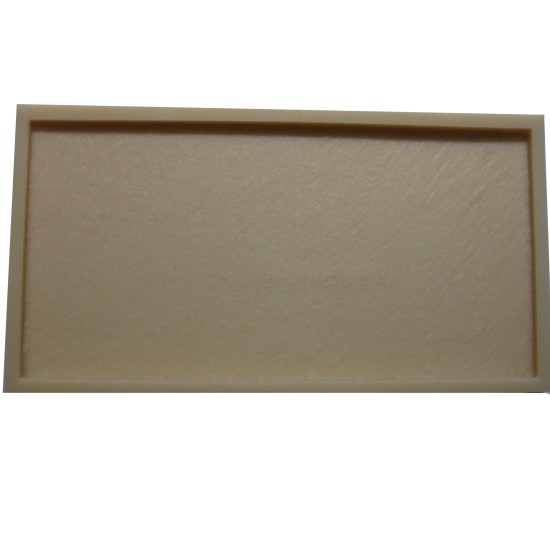

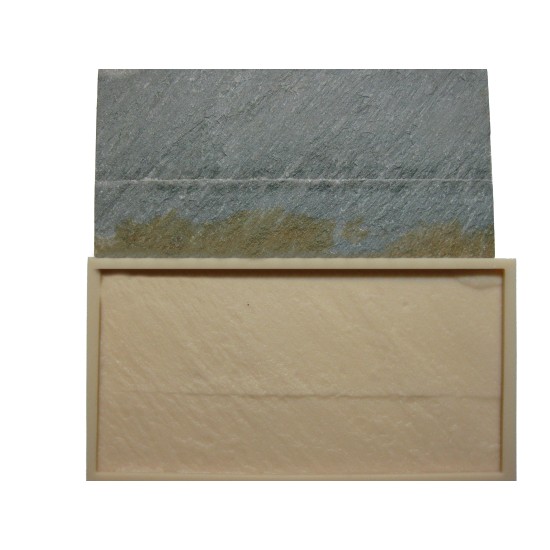

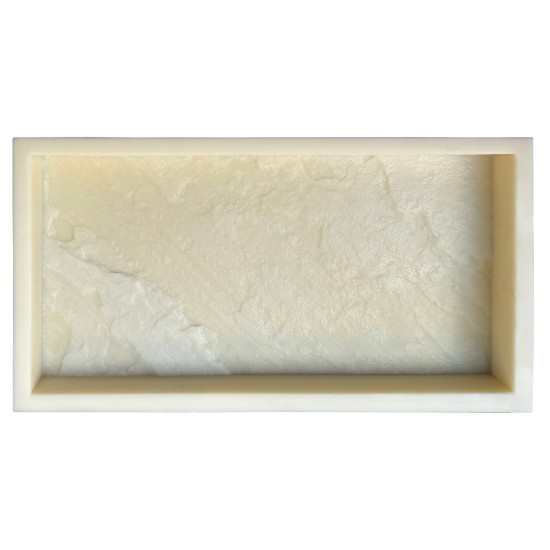

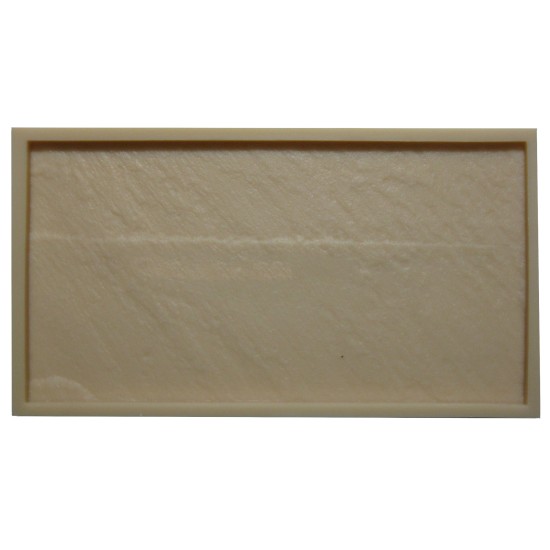

Stepping Stone Mold SS 5305, 23.5" x 11.75"
SS 5305 /1, /2, /3, /4, /5 Dimensions — 2
SQ.FT.(0.185m2) approximate.
Measurements
- 25 X 13" X 1" (63.50 cm X 33cm X 2.50 cm)
Mold sections — 1
Section dimensions:
Approx. size of section 23.5" X 11.75" X 1/2" ( 60 cm X
30cm X 1.50 cm)
SS 5305 /6, /7, /8, /9, Dimensions — 2
SQ.FT.(0.185m2) approximate.
Measurements
- 25 X 13" X 2.5" (63.50 cm X 33cm X 6.35 cm)
Mold sections — 1
Section dimensions:
Approx. size of section 23.5" X 11.75" X 2" ( 60 cm X 30cm
X 5.1 cm)
How to Make Concrete Stone
Instruction
We
also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
SS 5305 /1, /2, /3, /4, /5 Stone-casting Instructions:
Always
apply release agent to
your mold prior to casting concrete.
SS 5305 mold casting weight is about 7.97 lbs. (3.62 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland
cement to 3 parts sand [filler], but plasticizer and water has to be
re-calculated by cement weight)
2.66 lbs (1.21 kg) Portland cement (white for light stone colors, gray for dark
stone colors)
5.31 lbs (2.41 kg) Sand (20-30 mesh recommended. Silica sand or
"all-purpose" sand works great)
10.62 oz (0.29 L) Water (We recommend water to be 20%-30% of cement weight.)
(If your mix is too liquid, use less water.)
0.42 oz (12.06 g) Super-plasticizer (Superplasticizer's
dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to
your mix prior to adding the water. Mix concrete with pigment and additives for
a few minutes, then add water (mix at least 3-5 minutes). You can also add
Super plasticizer to the water 10-15 minutes prior to casting, then mix with
dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes
until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected
sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold
in 12-24 hours
SS
5305 /6, /7, /8, /9, Stone-casting
Instructions:
Always
apply release agent to
your mold prior to casting concrete.
SS 5305 mold casting weight is about 31.86 lbs. (14.47 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland
cement to 3 parts sand [filler], but plasticizer and water has to be
re-calculated by cement weight)
10.62 lbs (4.82 kg) Portland cement (white for light stone colors, gray for
dark stone colors)
21.24 lbs (9.65 kg) Sand (20-30 mesh recommended. Silica sand or
"all-purpose" sand works great)
42.49 oz (1.16 L) Water (We recommend water to be 20%-30% of cement weight.)
(If your mix is too liquid, use less water.)
1.7 oz (48.23 g) Super-plasticizer (Superplasticizer's
dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to
your mix prior to adding the water. Mix concrete with pigment and additives for
a few minutes, then add water (mix at least 3-5 minutes). You can also add
Super plasticizer to the water 10-15 minutes prior to casting, then mix with
dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes
until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected
sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold
in 12-24 hours

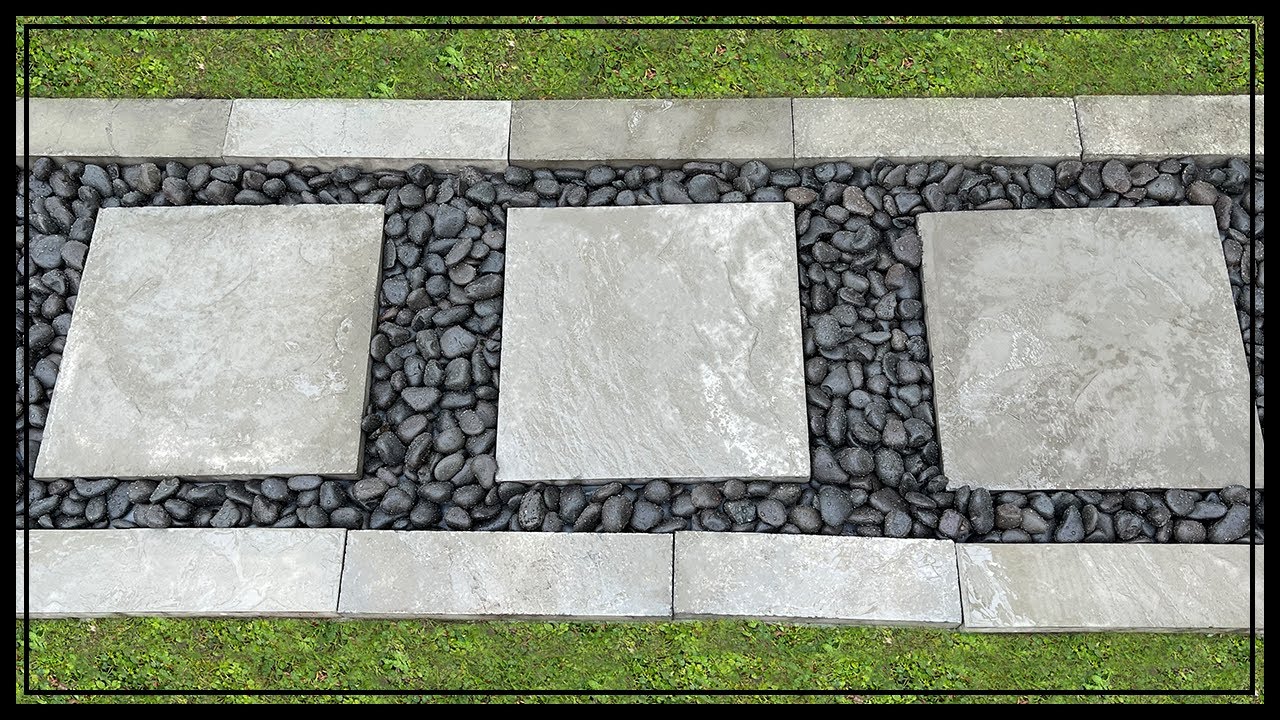

How to Make and Install Concrete Stepping Stones
