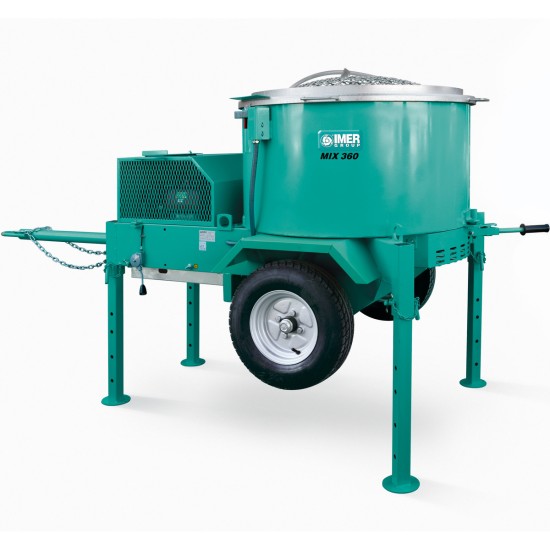

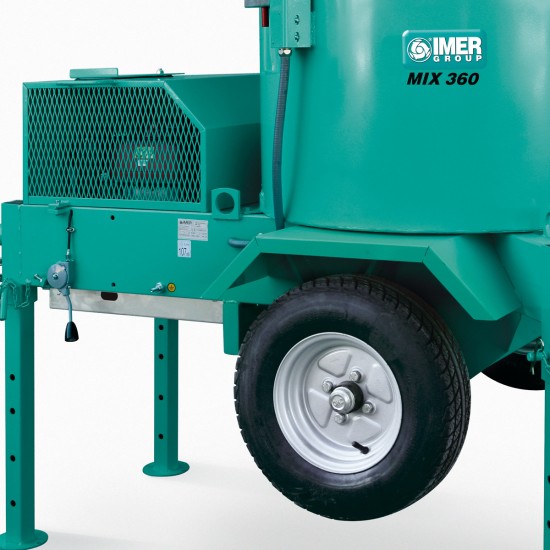

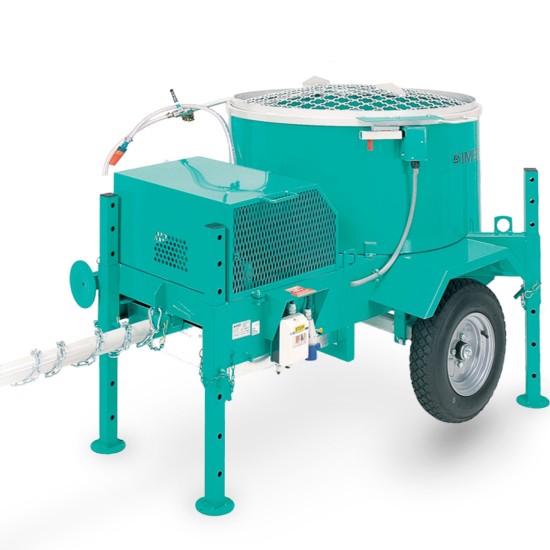

Imer Vertical Shaft Mixer - Mortarman 360 (Mini Batch Plant)
Click Image for Gallery
Perfect for busy precast mixing operations 9 cu ft. Mixer
- Easy to move and comfortable to use thanks to the pneumatic wheels and legs adjustable in height;
- Maximum precision and minimum effort in handling;
- Material loading is easy with the grid with bag-splitting blade;

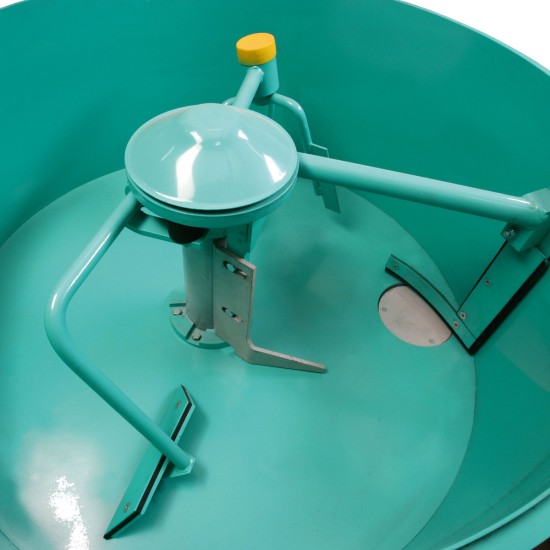

- Planetary mixing system;
- Paddles with rubber inserts for cleaning the drum;
- Protection cover on the rotation shaft to distribute the material uniformly;
- Maximum safety for the operator with the paddle rotation stopping device when the protection grid of the drum is opened;
- Gearbox unit with gears in oil bath to ensure long life of the machine and a low noise level.
Drum Capacity: 12 Cu Ft
Batch Output: 9 Cu Ft / 800 Lbs
Drum Diameter: 38"
Maximum Aggregate size: 3/8"
Discharge outlet height: 30"
Pneumatic Wheels: 18"
Machine Weight: 800 lbs
Electric Motor: 5 HP 220v
Gas engine: 11 h.p. Honda
Dimensions: 59" x 58" x 44"
Available options:
Model #1194585: Model without Motor
Model #1194574: 220V/60Hz, 5 HP, Single-Phase
Model #1194575: 220V/60Hz, 5 HP, 3 Phase
Model #1194576: 440V/60Hz, 5 HP, 3 Phase
Model #1194578: 11 HP Honda GX
