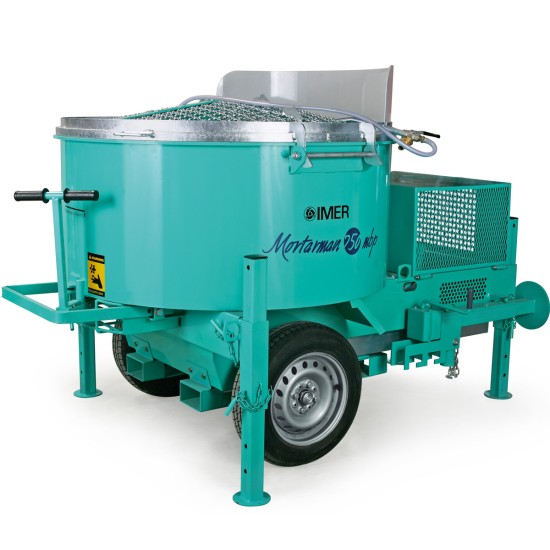

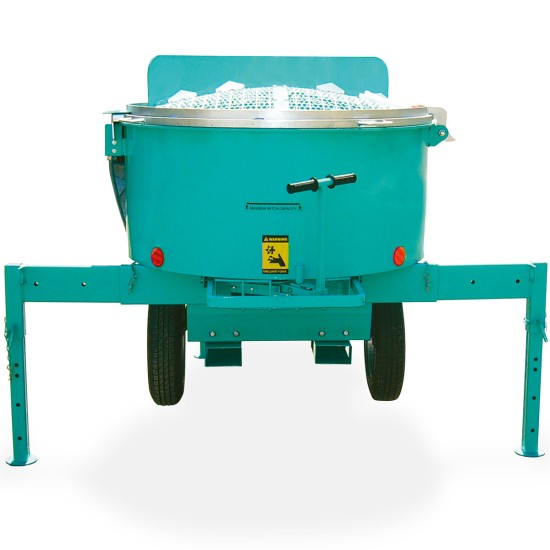

Imer Vertical Shaft Mixer - Mortarman 750 (Mini Batch Plant)

Imer Vertical Shaft Mixer - Mortarman 750 (Mini Batch Plant)

Perfect for busy precast mixing operations 16 cu ft. Mixer

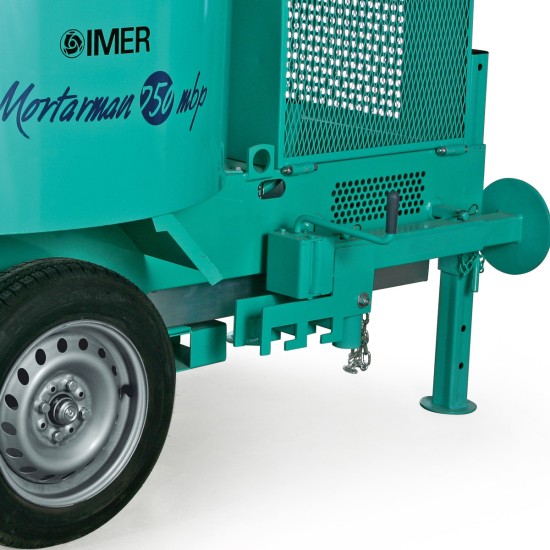

  • Easy to move and comfortable to use thanks to the pneumatic wheels and legs adjustable in height;
  • Maximum precision and minimum effort in handling;
  • Material loading is easy with the grid with bag-splitting blade;

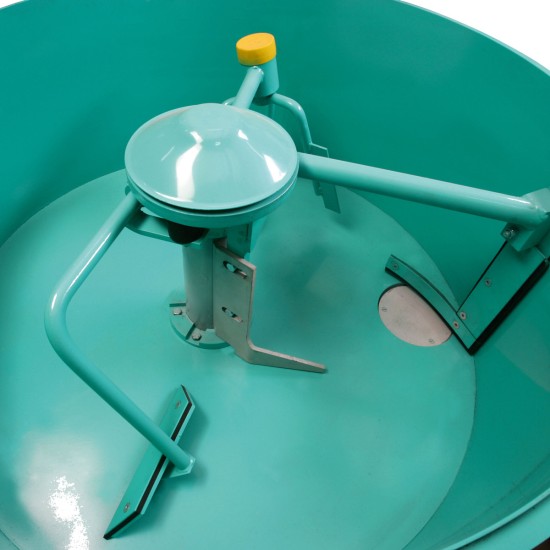

  • Planetary mixing system;
  • Paddles with rubber inserts for cleaning the drum;
  • Protection cover on the rotation shaft to distribute the material uniformly;
  • Maximum safety for the operator with the paddle rotation stopping device when the protection grid of the drum is opened;
  • Gearbox unit with gears in oil bath to ensure long life of the machine and a low noise level.

Drum Capacity: 22 Cu Ft

Batch Output: 16 Cu Ft / 1600 Lbs

Drum Diameter: 52"

Maximum Aggregate size: 3/8"

Discharge outlet height: 30"

Pneumatic Wheels: 22"

Machine Weight: 1700 lbs

Electric Motor: 5 HP 220v

Gas engine: 11 h.p. Honda

Dimensions: 90" x 62" x 63"

5 HP 220V 3 phase model

Available options:

Model #1194640: Model without Motor

Model #1194574: 220V/60Hz, 5 HP, Single-Phase

Model #1194645: 220V/60Hz, 7.5 HP, 3 Phase

Model #1194646: 440V/60Hz, 7.5 HP, 3 Phase

Model #1194648: 13 HP Honda GX
