Collomix TMX Heavy Duty Compact Mixer, 20 & 32 Gallons
COLLOMIX, HEAVY DUTY FORCED-ACTION MIXER
FASTER, EASIER MIXING

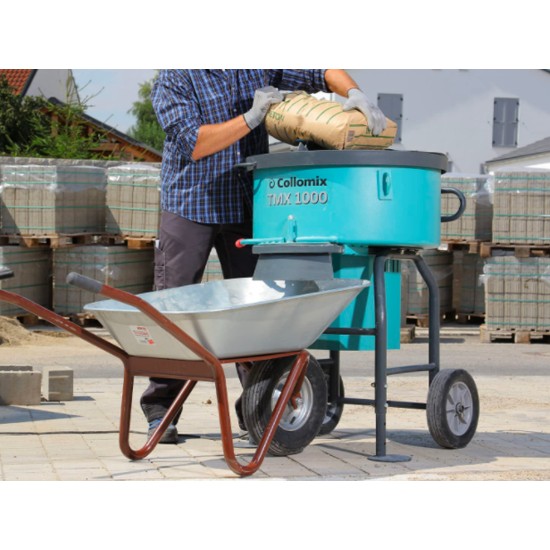

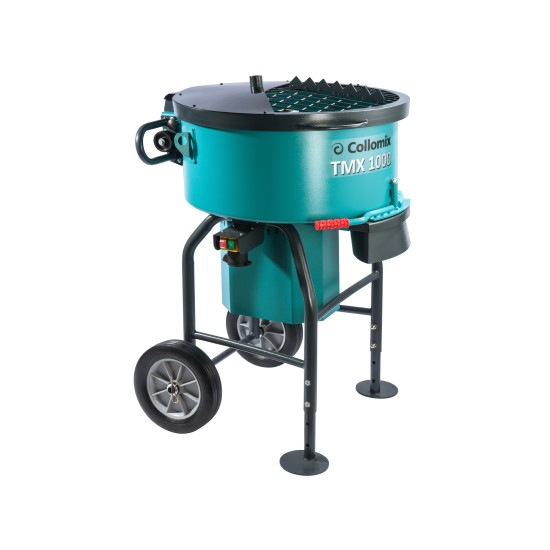

Forced-Action Pan Mixer TMX 1000
20 gal. effective mixing volume
Rugged and stable

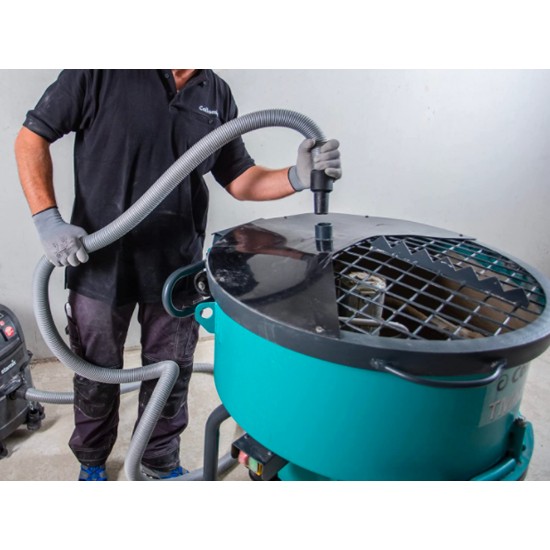

Dust extraction
Easy loading
The forced-action pan mixer ColloMatic® TMX 1000 is suitable for up to 20 gals of mixing material. Ruggedly constructed, this compact mixer can cope well with construction site conditions.
The automatic mixer TMX 1000 is particularly suitable for processing dry and highly-viscous materials such as numerous types of mortar, stucco, grout and concrete.
Its main attributes are speed, mobility and reliability – so it saves time, energy and money.
Technical specifications:
- Capacity - 26 Gal
- Usable volumes - 20 Gal
- Motor output - 2.0 kW
- Horsepower - 2.7 Hp
- Voltage: 110V/60Hz
- Speed of mixing tool - 30 rpm
- Height to bottom edge of discharge chute: 625 mm
- Dimensions: 33.1" x 29.7" x 46.1"
- Noise Emissions 86 dB
- Weight - 288 lbs.
Forced-Action Pan Mixer TMX 1500
32 gals. effective mixing volume
Rugged and stable
Dust extraction
Easy loading
The forced-action pan mixer ColloMatic® TMX 1500 is used for mixing dry, moist and wet mixes in large volumes up to 32 gals.
By using the TMX 1500 you will save time and money, because you will always achieve perfect mixing results within a very short mixing time. And thanks to its particularly robust design, the TMX 1500 is suitable for almost any construction site.
- Capacity - 40 Gal
- Usable volumes - 32 Gal
- Motor output - 2.8 kW
- Horsepower - 2.8 Hp
- Voltage: 240V/60Hz
- Speed of mixing tool - 30 rpm
- Height to bottom edge of discharge chute: 625 mm
- Dimensions: 33.1" x 29.7" x 49.6"
- Noise Emissions 85 dB
- Weight - 304.2 lbs.
Materials and applications: grout, concrete, synthetic resin screed, drainage mortar, stucco, mortar.
NOT FOR: thin/fluid screed types, thin/fluid screed types, tile adhesive, leveling compounds/self-leveling fillers.
