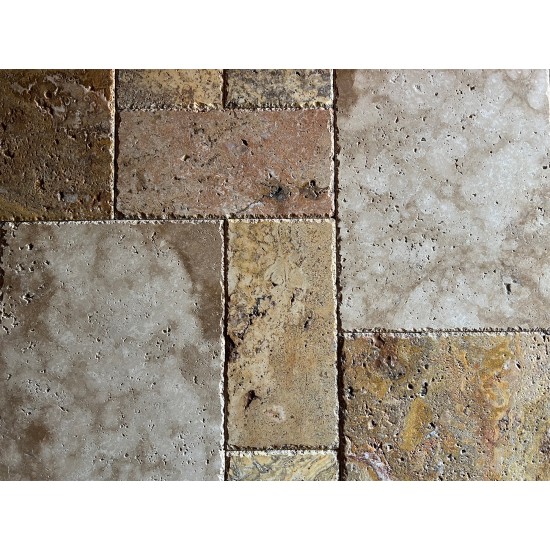

Travertine Paving Stone Mold PS 5602, French Pattern & Pool Coping
Concrete Travertine Mold Various sizes French Pattern Pool Coping

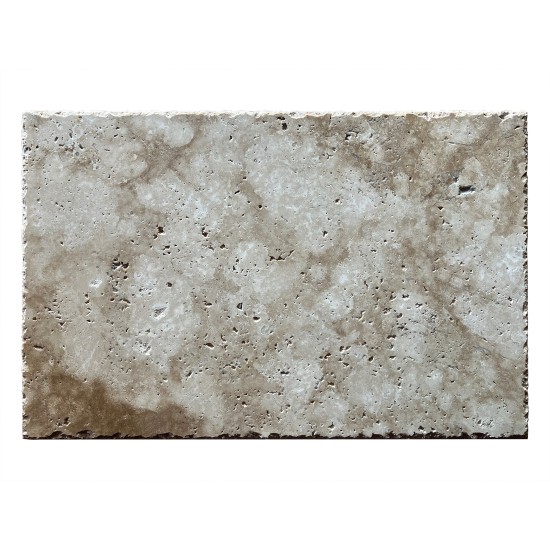

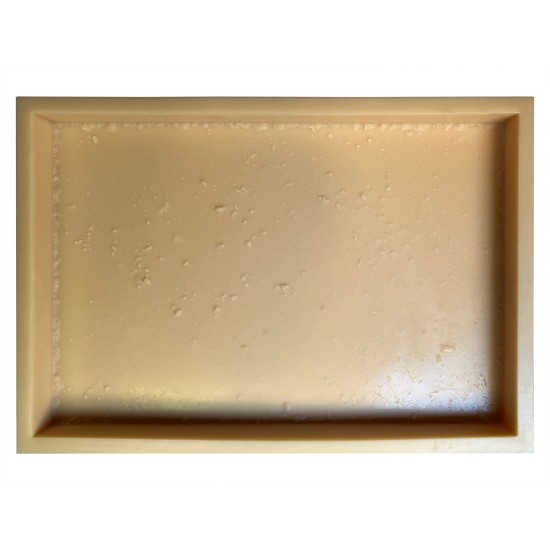

Travertine Paving Mold PS 5602/1
Mold Measurements – 17.5” x 25.5” x 2.5” (44.5cm x 57cm x 6.35cm)
Mold sections - 1
Section dimensions:
Approx. size of each section 16” x 24” x 2" (40.6cm x 61cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/1 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/1 mold casting weight is about 44.31 lbs. (20.12 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
14.77 lbs (6.71 kg) Portland cement (white for light stone colors, gray for dark stone colors)
29.54lbs (13.41 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
59 oz (1.61 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
2.36 oz (67.07 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
Concrete Travertine Mold

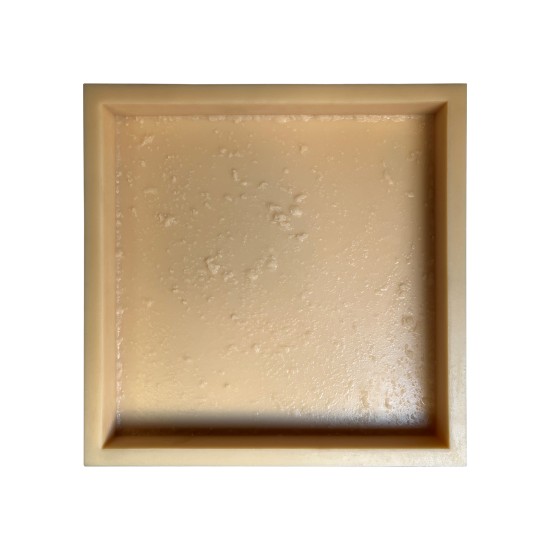

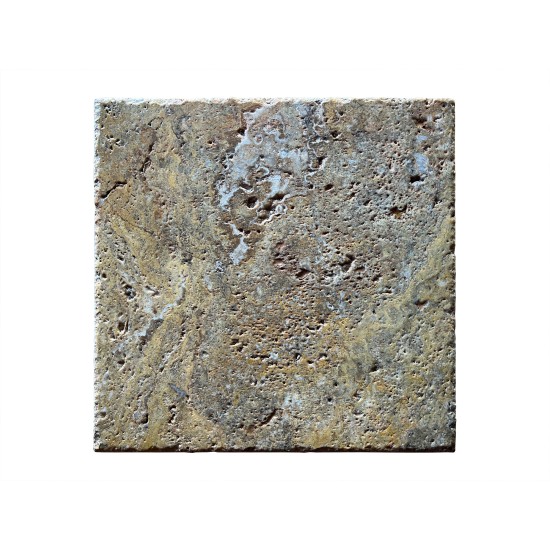

Travertine Paving Mold PS 5602/2
Mold Measurements – 17.5” x 17.5” x 2.5” (44.5cm x 44.5cm x 6.35cm)
Mold sections - 1
Section dimensions:
Approx. size of each section 16” x 16” x 2" (40.6cm x 40.6cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/2 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/2 mold casting weight is about 29.54 lbs. (13.41 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
9.85 lbs (4.47 kg) Portland cement (white for light stone colors, gray for dark stone colors)
19.69lbs (8.94 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
39.39 oz (1.07 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
1.58 oz (44.71 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
Concrete Travertine Mold

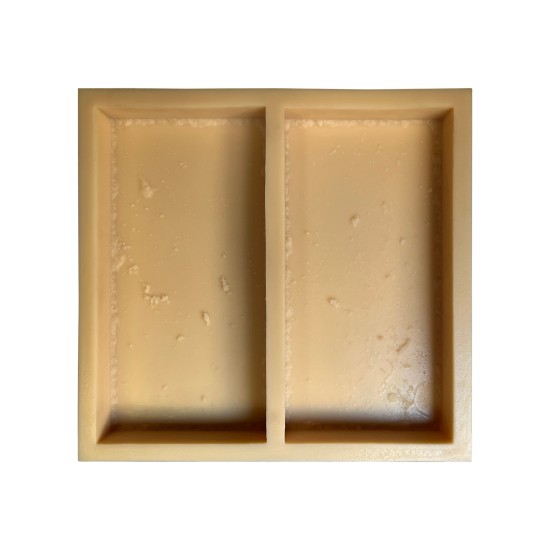

Travertine Paving Mold PS 5602/3
Mold Measurements – 17.5” x 18.5” x 2.5” (44.5cm x 47cm x 6.35cm)
Mold sections - 2
Section dimensions:

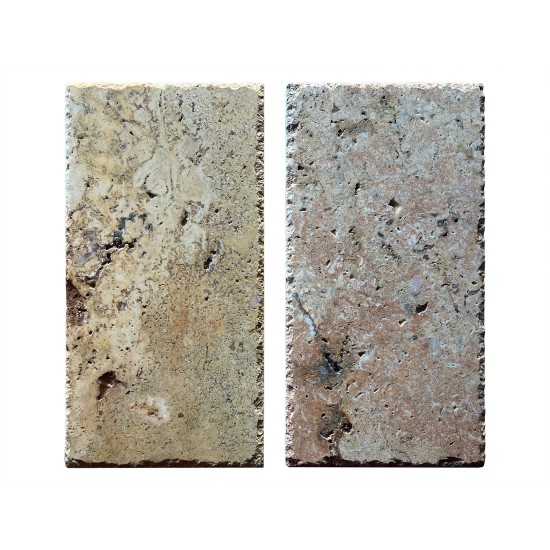

Approx. size of each section 8” x 16” x 2" (20.3cm x 40.6cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/3 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/3 mold casting weight is about 29.54 lbs. (13.41 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
9.85 lbs (4.47 kg) Portland cement (white for light stone colors, gray for dark stone colors)
19.69lbs (8.94 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
39.39 oz (1.07 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
1.58 oz (44.71 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
Concrete Travertine Mold

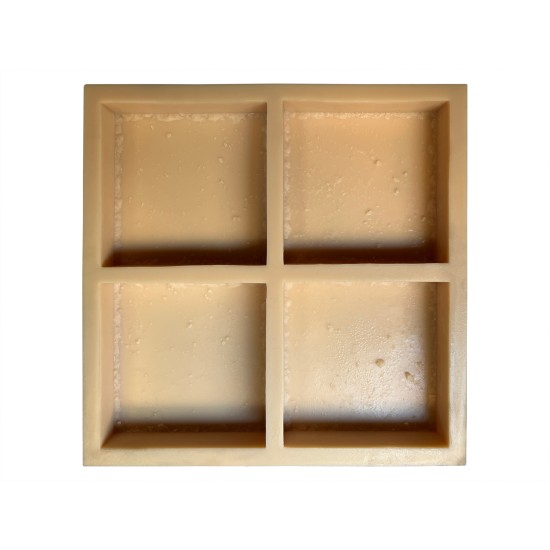

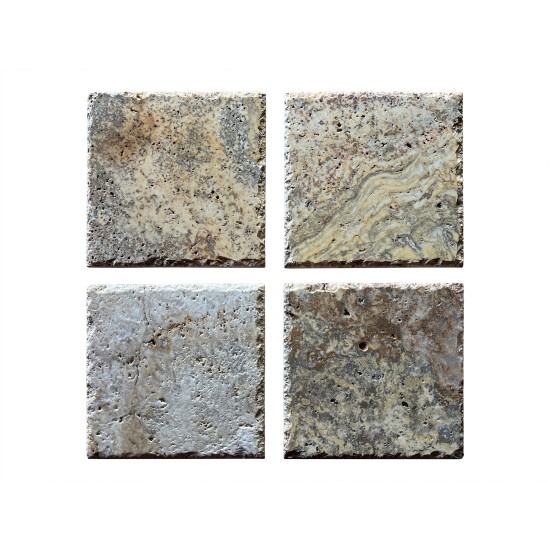

Travertine Paving Mold PS 5602/4
Mold Measurements – 18.5” x 18.5” x 2.5” (47cm x 47cm x 6.35cm)
Mold sections - 4
Section dimensions:
Approx. size of each section 8” x 8” x 2" (20.3cm x 20.3cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/4 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/4 mold casting weight is about 29.54 lbs. (13.41 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
9.85 lbs (4.47 kg) Portland cement (white for light stone colors, gray for dark stone colors)
19.69lbs (8.94 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
39.39 oz (1.07 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
1.58 oz (44.71 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
Concrete Travertine Mold
Travertine Paving Mold PS 5602/5
Mold Measurements – 17.5” x 17.5” x 2.5” (44.5cm x 44.5cm x 6.35cm)
Mold sections - 1
Section dimensions:
Approx. size of each section 16” x 16” x 2" (40.6cm x 40.6cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/5 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/5 mold casting weight is about 29.54 lbs. (13.41 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
9.85 lbs (4.47 kg) Portland cement (white for light stone colors, gray for dark stone colors)
19.69lbs (8.94 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
39.39 oz (1.07 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
1.58 oz (44.71 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
Concrete Travertine Mold

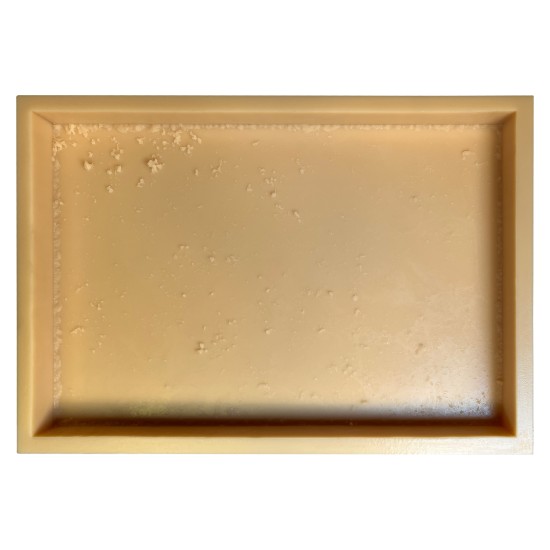

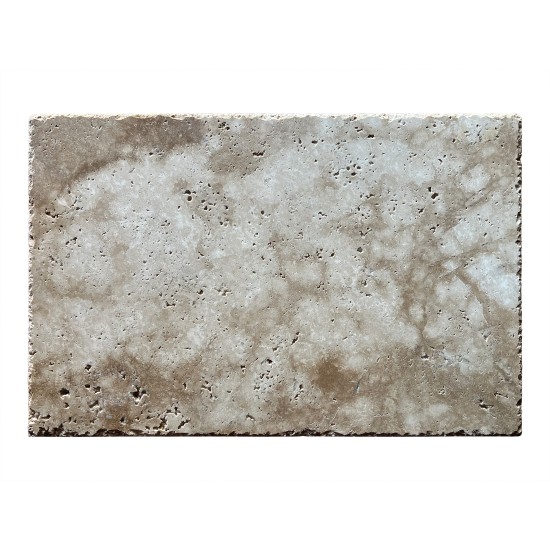

Travertine Paving Mold PS 5602/6
Mold Measurements – 17.5” x 25.5” x 2.5” (44.5cm x 64.8cm x 6.35cm)
Mold sections - 1
Section dimensions:
Approx. size of each section 16” x 24” x 2" (40.6cm x 61cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/6 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/6 mold casting weight is about 44.31 lbs. (20.12 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
14.77 lbs (6.71 kg) Portland cement (white for light stone colors, gray for dark stone colors)
29.54lbs (13.41 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
59.08 oz (1.61 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
2.36 oz (67.07 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
Concrete Travertine Mold

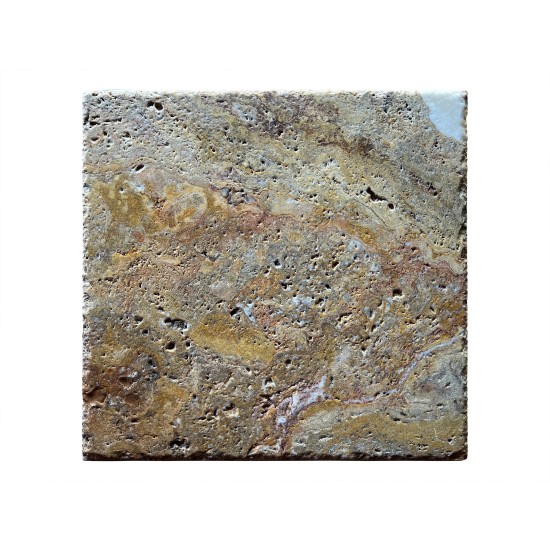

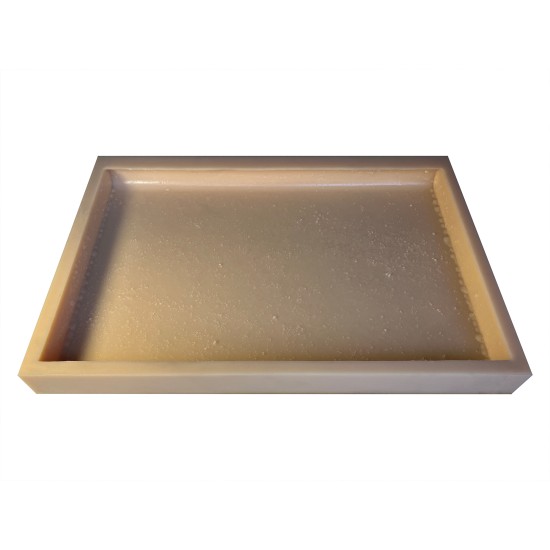

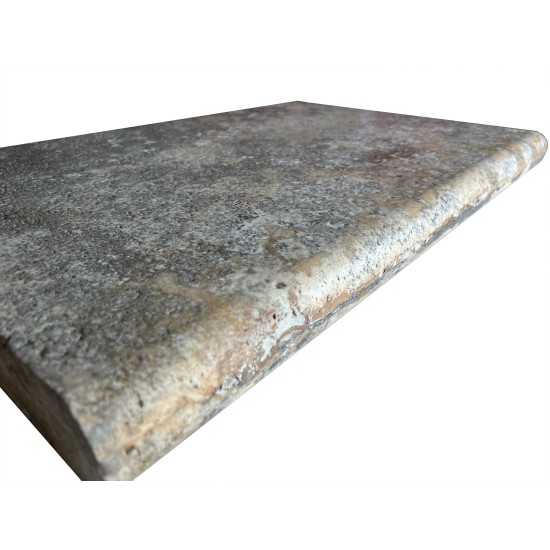

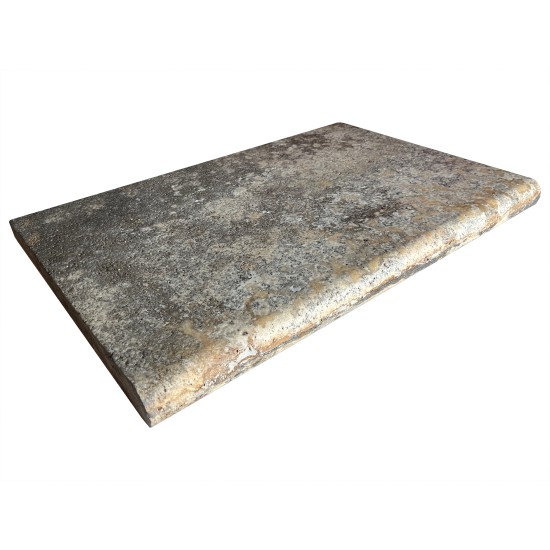

Travertine Pool Coping and Paving Mold PS 5602/7
Mold Measurements – 25.5” x 17.5” x 2.5” (64.7cm x 44.5cm x 6.35cm)
Mold sections - 1
Section dimensions:
Approx. size of each section 24” x 16” x 2" (61cm x 40.6cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/7 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/7 mold casting weight is about 44/31 lbs. (20.12 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
14.31 lbs (6.71 kg) Portland cement (white for light stone colors, gray for dark stone colors)
29.54 lbs (13.41 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
59.08 oz (1.61 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
2.36 oz (67.07 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
Concrete Travertine Mold

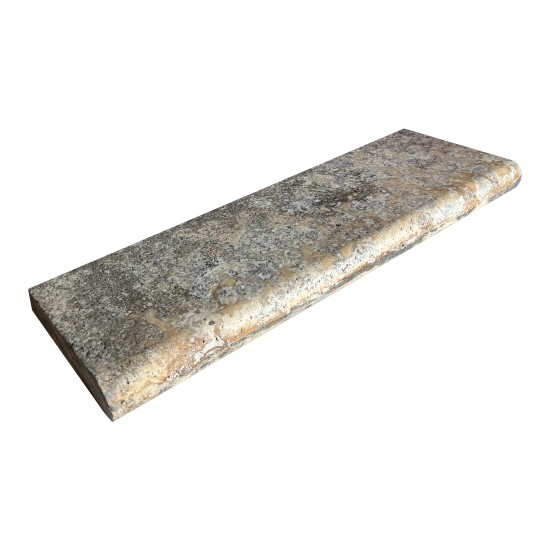

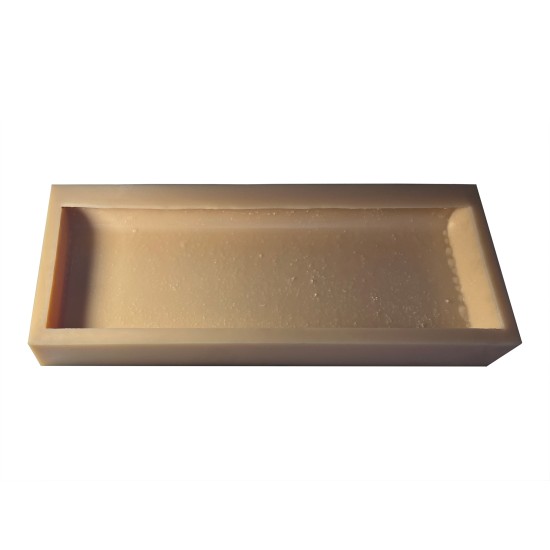

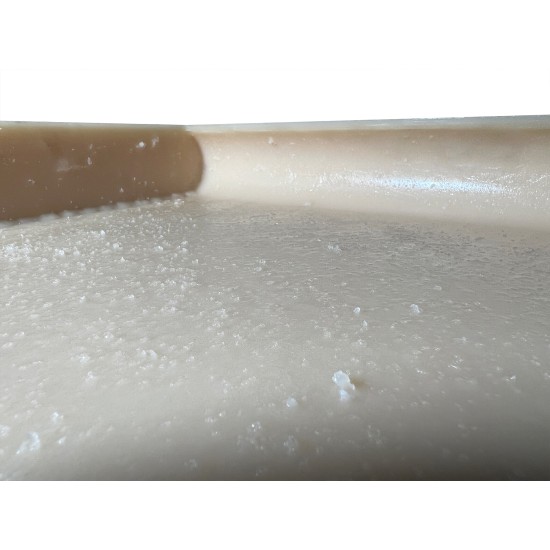

Travertine Pool Coping and Paving Mold PS 5602/8
Mold Measurements – 25.5” x 9.5” x 2.5” (64.77cm x 24.13cm x 6.35cm)
Mold sections - 1
Section dimensions:
Approx. size of each section 24” x 8” x 2" (61cm x 20.32cm x 5cm).
How to Make Concrete Stone Instruction
We also recommend following materials:
Concrete Release Agent Concentrate
Concrete additive-Water reducer-Super plasticizer
PS 5602/8 Stone-casting Instructions:
Always apply release agent to your mold prior to casting concrete.
PS 5602/8 mold casting weight is about 22.16 lbs. (10.06 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
7.39 lbs (3.35 kg) Portland cement (white for light stone colors, gray for dark stone colors)
14.77 lbs (6.71 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
24.54 oz (0.8 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
1.18 oz (33.54 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours.
