Terrazzö Cast — Granite-Look Epoxy Floor System

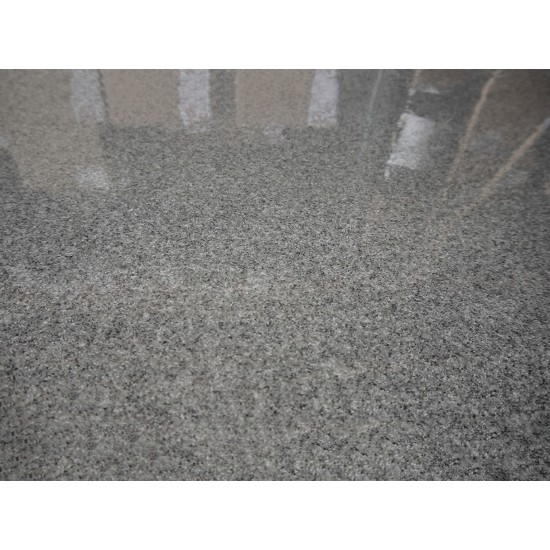

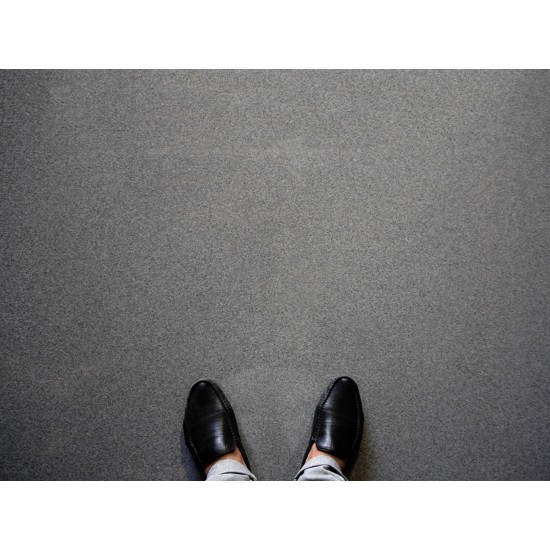

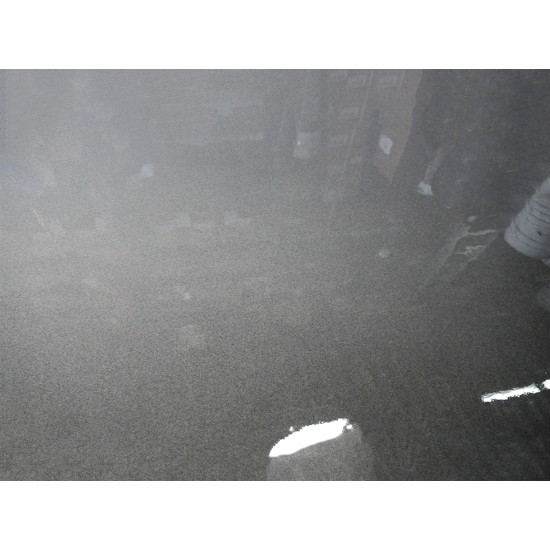

Terrazzö Cast is a high-build, semi-self-leveling epoxy floor coating. It creates a smooth, seamless surface that looks like polished, fine-grain granite. The result is a polished-stone hard-coat with a thick 1/8″ build that lays flat and uniform across large areas. Left unsealed, it cures to a glass-like gloss. Add a urethane or polyaspartic topcoat when you want extra wear and UV resistance, non-slip finishes, and your choice of gloss, satin, or matte sheen. The dense, non-porous finish is easy to clean and maintain, and the consistent micro-speck finish delivers a clean, modern appearance for interior concrete spaces.

Tech Specs (@ ~70°F)

• Coverage (Small Kit): ~50–60 sqft at ~1/8" total build
• Pot Life: 15–25 minutes
• Tack-Free: 4–6 hours
• Recoat Window: 6–9 hours
• Light Foot Traffic: 12–24 hours
• Full Cure / Heavy Traffic: 2–5 days

Where to use

Interior concrete floors, homes, retail shops, showrooms, offices, lobbies, salons, galleries, hallways, schools and universities, classrooms, libraries, museums, courtrooms, municipal buildings, corridors, conference/training facilities, studios, and any other interior concrete substrate floors.

Everything you need

1. Spike shoes: Spike Shoes allow you to walk on liquid epoxy without leaving footprints.
2. Placement tools: 3/8" V-notch squeegee or gauge rake set to 1/8".
3. Finishing Tools: Looped roller or spiked roller. Used for backrolling and self leveling.
4. Primer: GEC-10W (water-based epoxy) or GE-100 (pigmented 100% solids).

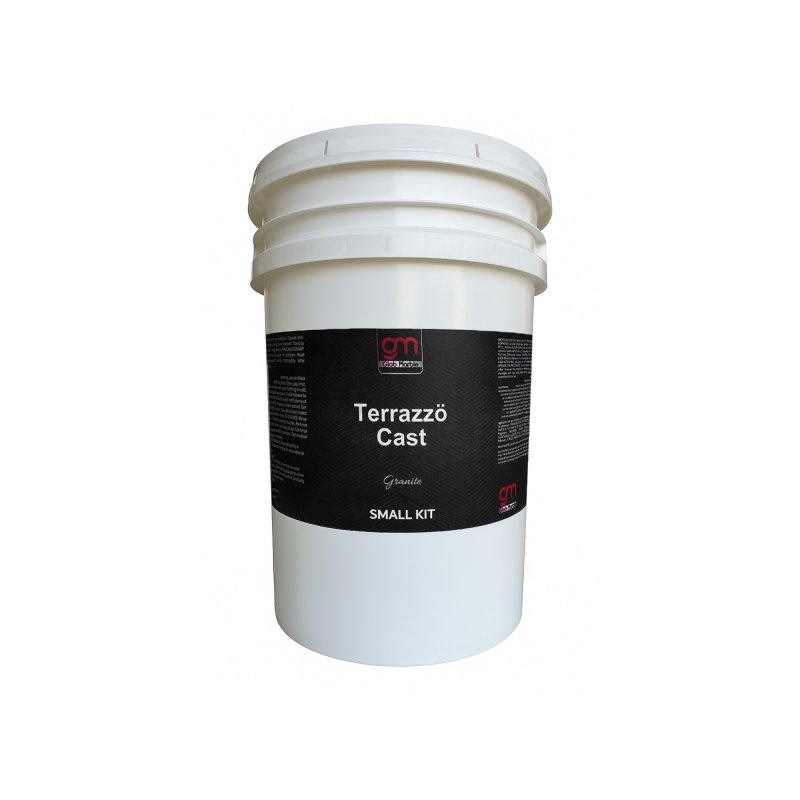

5. Body coat: Terrazzö Cast kit (Part A + Part B + pre-measured aggregate).
6. Topcoat (optional):
• GU-20 — solvent-based polyurethane (gloss, satin)
• GU-20W — water-based polyurethane (gloss, flat)
• GU-30 — solvent-based polyurethane with grip additive (orange-peel)
• GP-20 — extremely fast setting polyaspartic (gloss).

Surface Prep

• Mechanically grind or shot-blast floor to concrete surface profile of 2–3.
• Repair cracks/voids with GCF (fast-cure urethane) or GE-P (epoxy paste); grind flush.
• Clean thoroughly; remove coatings, sealers, oils, and dust.
• Check moisture (ASTM F2170 / F1869) and only install within acceptable limits. A vapor moisture barrier may be needed.

How to install

1. Prime the slab. Use spike shoes and plan your exit. Use a magic trowel squeegee to spread GEC-10W or GE-100 in a color that corresponds to your Terrazzö Cast color. Then backroll the primer for even material distribution. This seals pores and sets the base color. Stay within the recoat window. If you wait too long, sand/degloss before the next step.

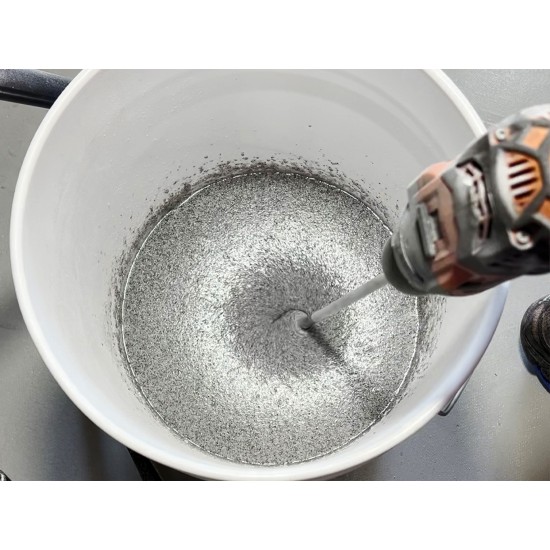

2. Mix the body coat. Mix Part A and Part B for 2–3 minutes. Afterwards, slowly add the pre-measured micro-aggregate while mixing until uniform. Note: We do not recommend splitting kits. If you must, split by weight only with accurate scales (check TDS for weight ratio)

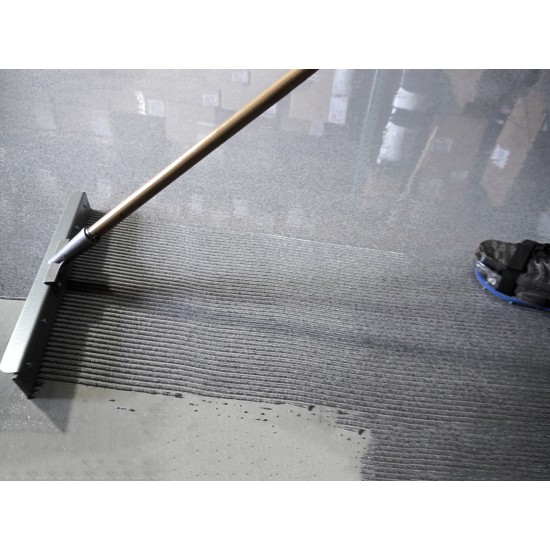

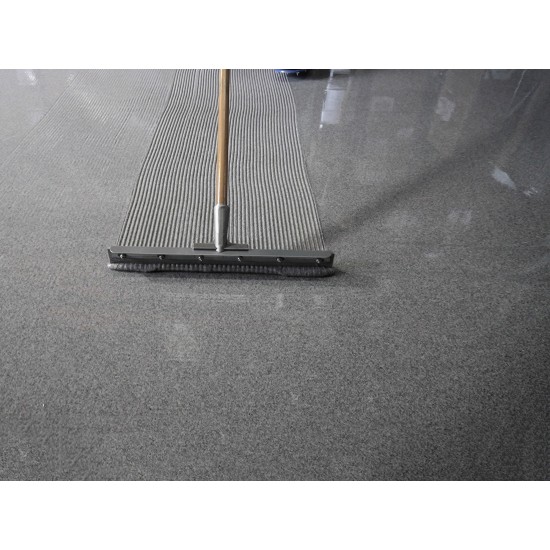

3. Place and gauge. Use spike shoes and plan your exit. Pour material in ribbons. Pull with a 3/8" V-notch squeegee or 1/8" gauge rake. Do not push or pull the material too quickly, instead work slowly and let the material flow freely.
4. Back-roll . Use a looped roller or a spiked roller to backroll the material east/west, then north/south. This removes squeegee/gauge lines, helps self-level the material, ensures even material distribution, and release trapped air.
5. Topcoat (optional). A topcoat will further add UV resistance, and also add wear, scratch and abrasion protection.

Within 24 hours you can apply any of our polyurethane sealers without sanding. If 24 hours has passed since applying Terrazzö Cast, sand/degloss the surface to a uniform matte before topcoating.

Reccomended topcoats are:

• GU-20— solvent-based polyurethane (gloss, satin)
• GU-20W — water-based polyurethane (gloss, flat)
• GU-30 — solvent-based polyurethane with grip additive (orange-peel)
• GP-20 — extremely fast setting polyaspartic (gloss)

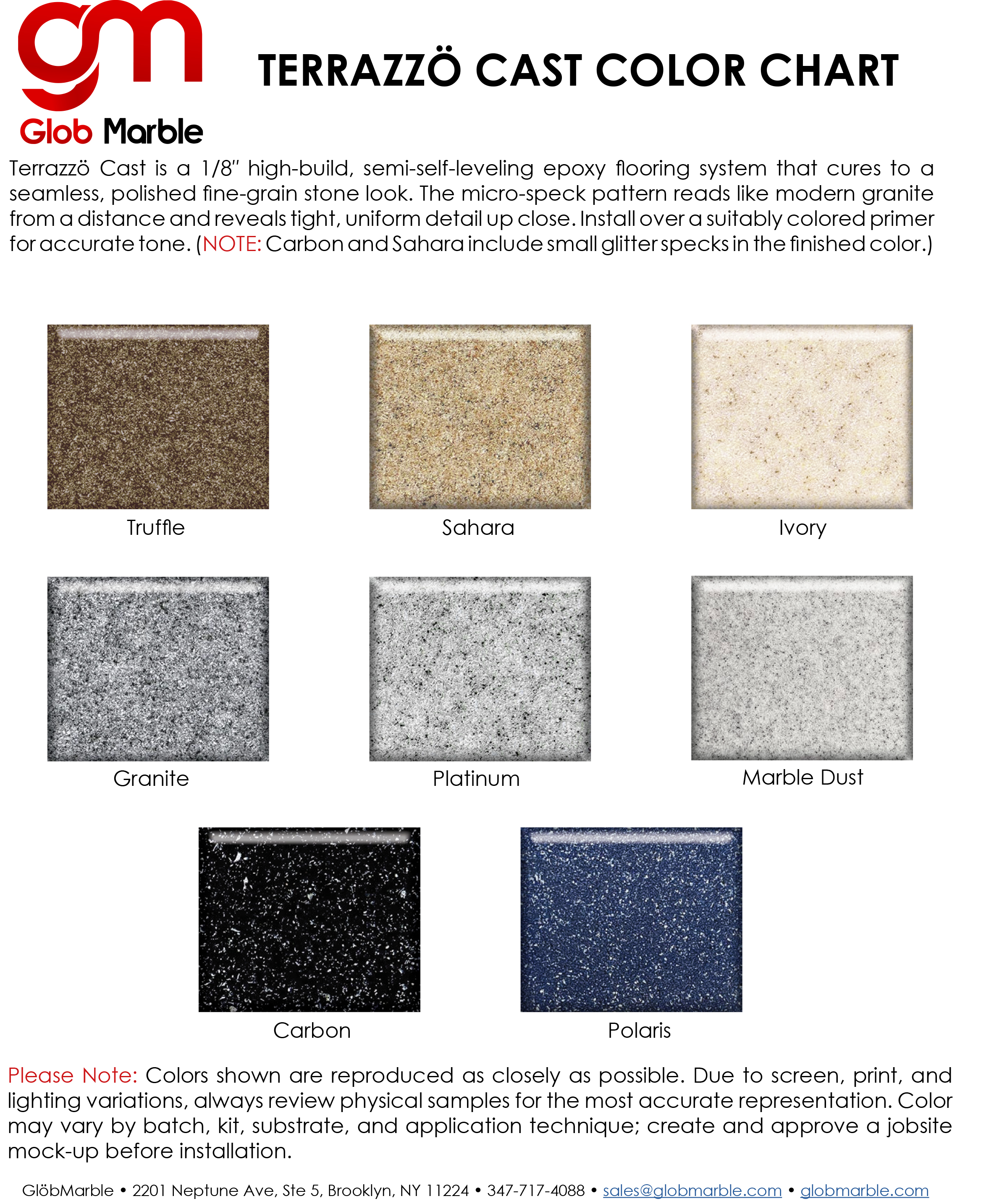

Available Colors

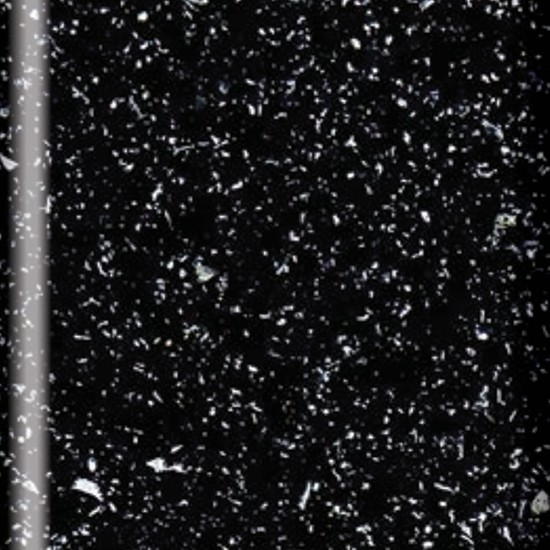

• Carbon (Black): deep black with fine white points and a light sparkle. (Contains glitter.)

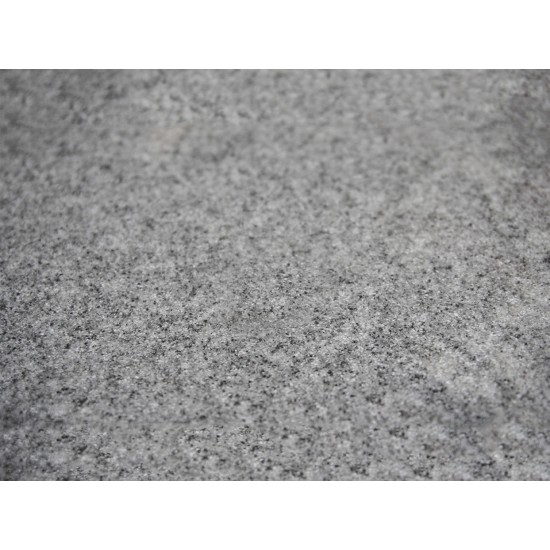

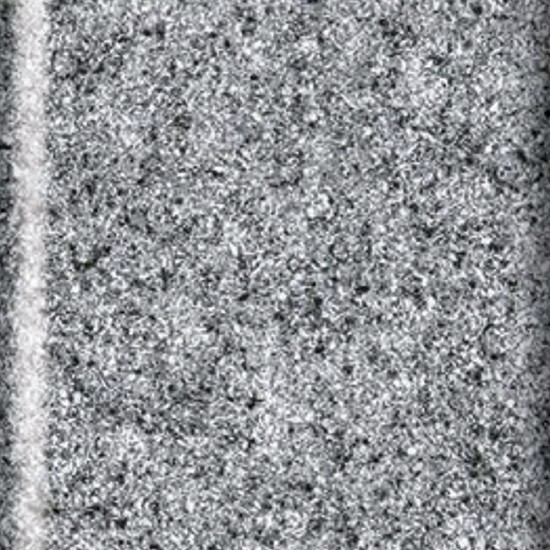

• Granite (Medium Gray): balanced gray with small white/gray/black specks.
• Platinum (Light Gray): clean light gray with small dark accents.

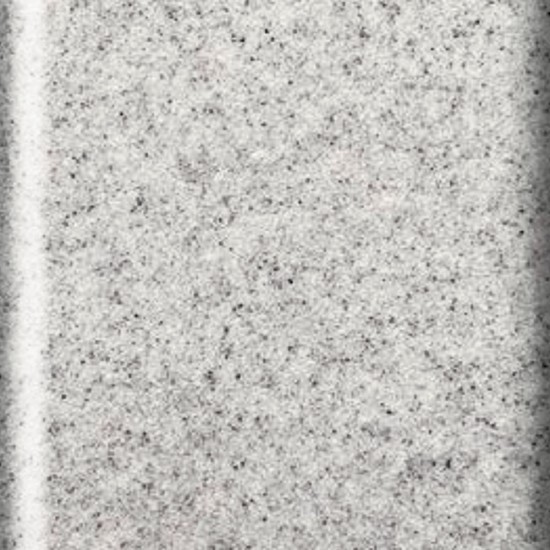

• Marble Dust (Ultra-Light Gray): very light gray/near white with subtle specks.
• Polaris (Deep Blue): rich dark blue with crisp white micro-specks.
• Truffle (Dark Brown): dark brown with gentle tonal specks.

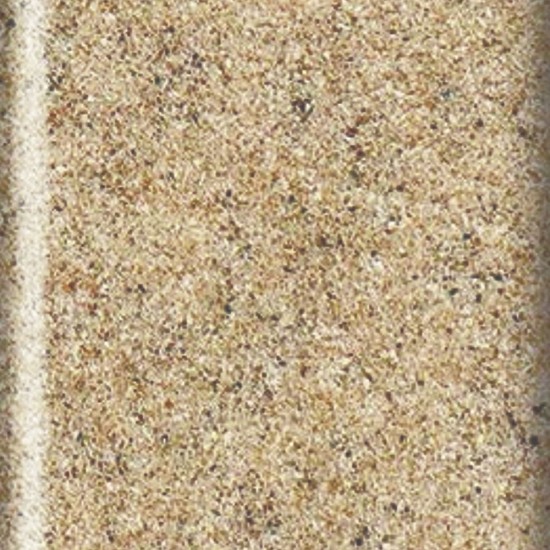

• Sahara (Medium Brown): warm brown with micro-specks and a touch of gold. (Contains glitter.)

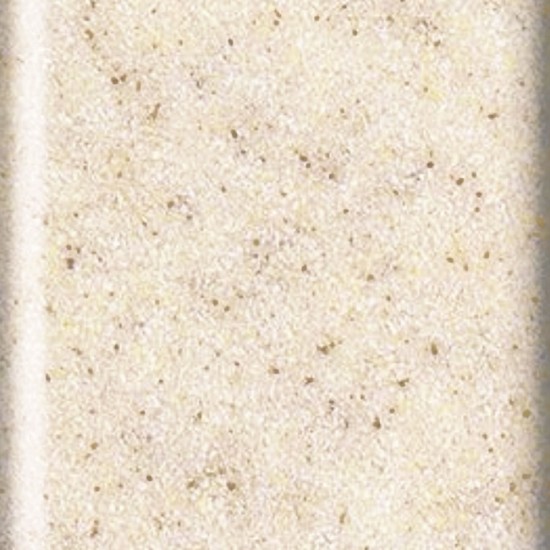

• Ivory (Light Beige): light beige/limestone look with quiet contrast.

Primer color should correspond to the Terrazzö Cast color you select (dark primer for dark floors, light primer for light floors).

Note:

• Interior use only.
• Keep substrate/material/ambient in the recommended range (see TDS).
• Always make a small jobsite sample to confirm color and finish.
• Color can vary by batch, primer shade, and application technique.
• Respect all recoat windows. When in doubt, sand/degloss between coats.
