Rubber molds have the abrasion resistance and tear strength needed to keep production moving. Casting concrete into rubber molds lets you make perfect copies of any original every time! Molds are ready for casting same day and last in production...saving you time, labor, and material costs. Urethane molds are used everyday by professionals to make architectural elements, concrete stone veneer, formliners, concrete countertops, GFRC panels, concrete statues and furniture and the list goes on. These molds can be used over and over.

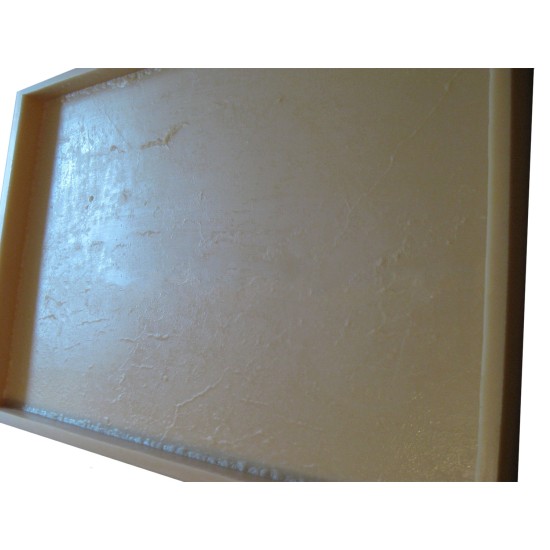

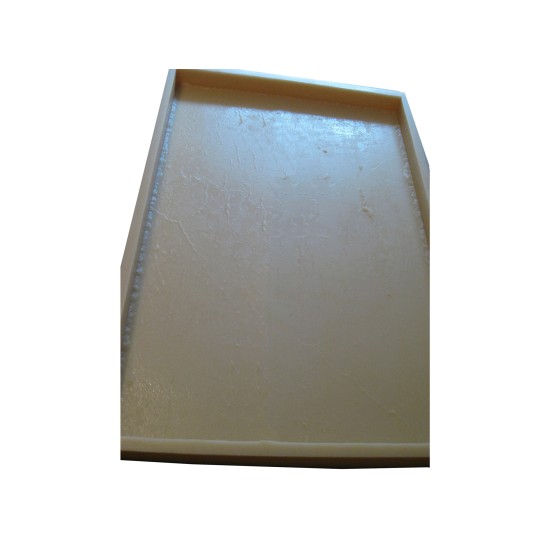

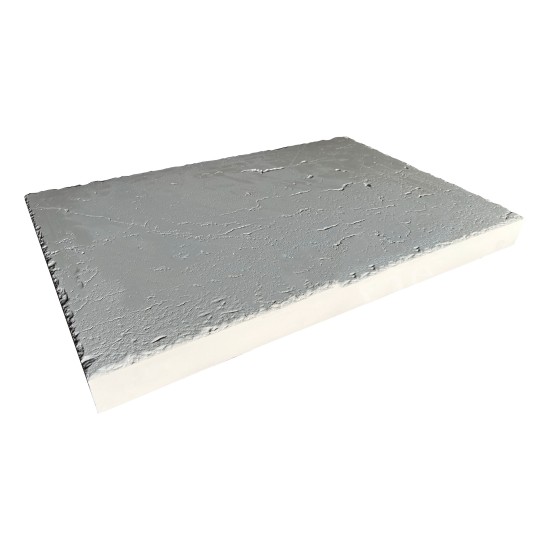

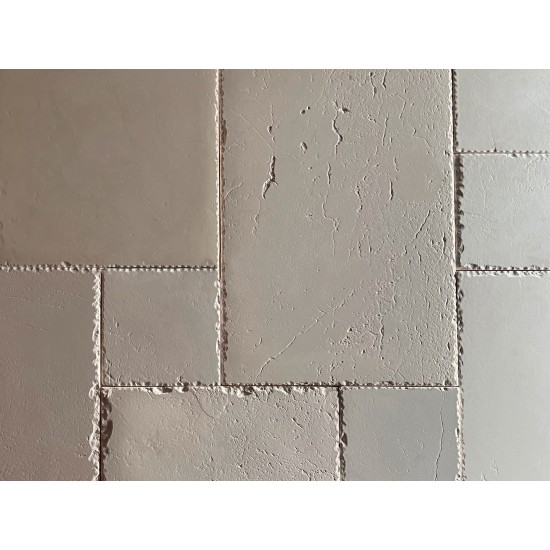

Stepping Stone Molds SS 5601/1


Mold size — 3.22 SQ.FT.(0.3m2) approximate.
Measurements - 25” X 17” X 2” (63cm X 43cm X 5cm)
Mold sections — 1
Section dimensions: Approx. size of  section 24” X 16”X 1 1/2" (60cm X 40cm X 4cm).

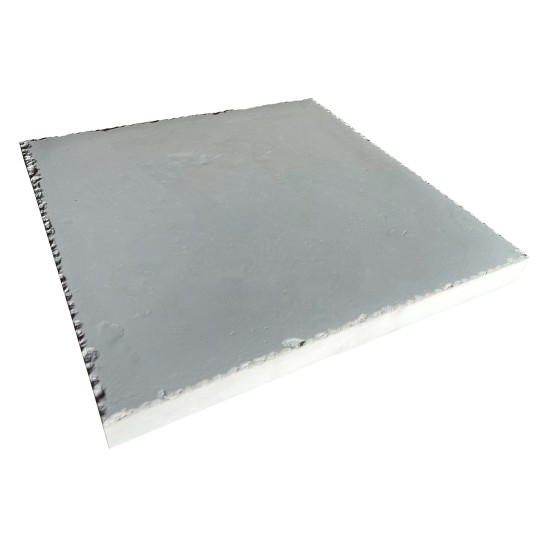

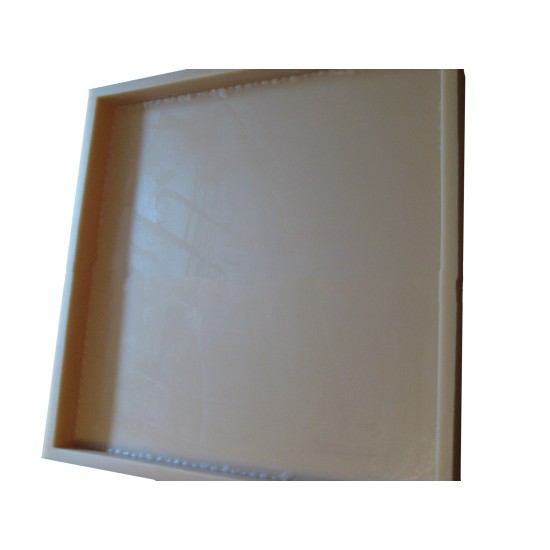

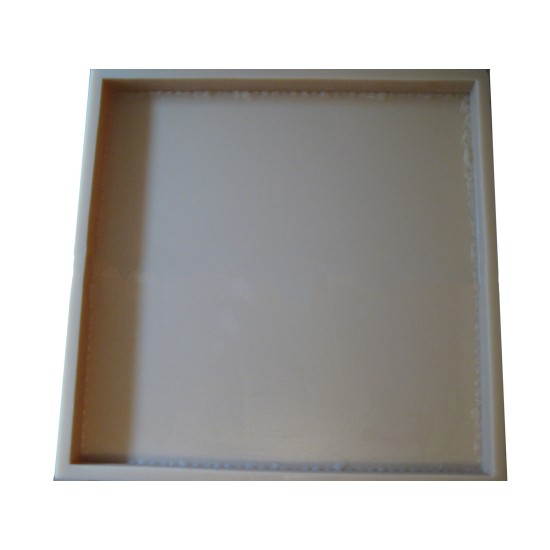

Stepping Stone Mold SS 5601/2

Step stone mold

Mold size — 2 SQ.FT.(0.18m2) approximate. Measurements - 17” X 17” X 2” (43cm X 43cm X 5cm)

Mold sections — 1

Section dimensions: Approx. size of section 16” X 16”X 1 1/2" (40cm X 40cm X 4cm).

To have a wider stone pattern variety we recommend buying the following molds together

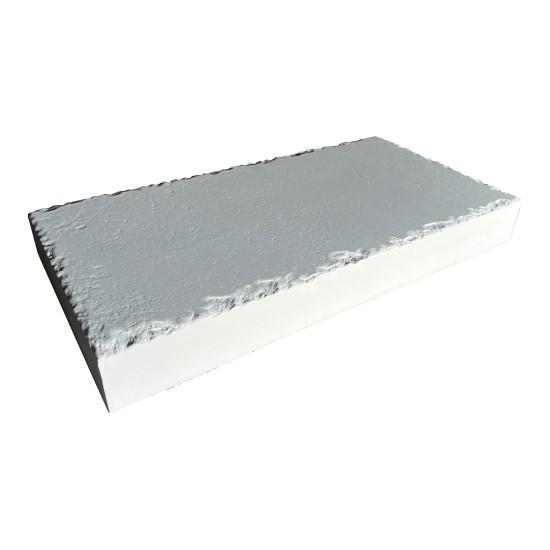

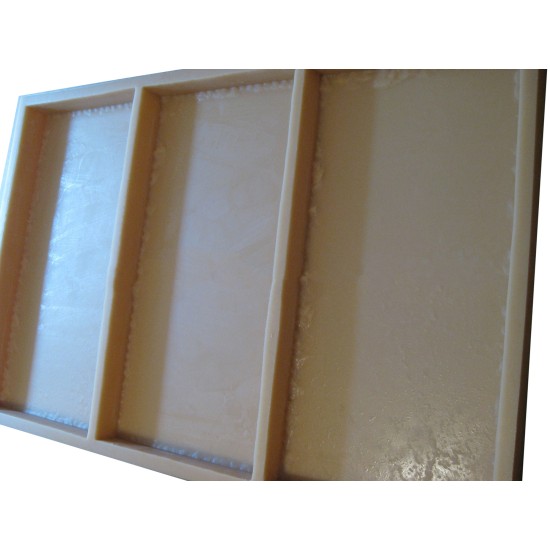

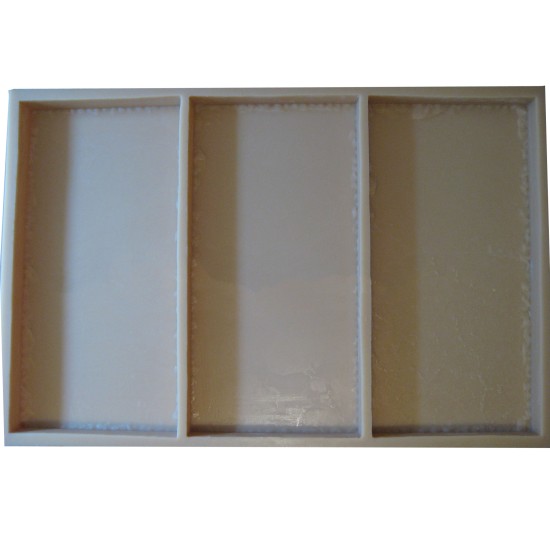

Stepping Stone Mold SS 5601/3

Step stone mold

Mold size — 3 SQ.FT. (0.28m2) approximate. Measurements - 26” X 17” X 2” (66cm X 43cm X 5cm)

Mold sections — 3

Section dimensions: Approx. size of  section 16” X 8”X 1 1/2" (43cm X 20cm X 4cm).

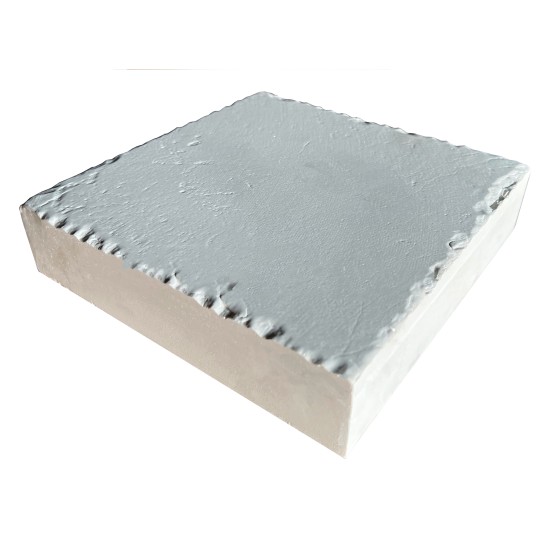

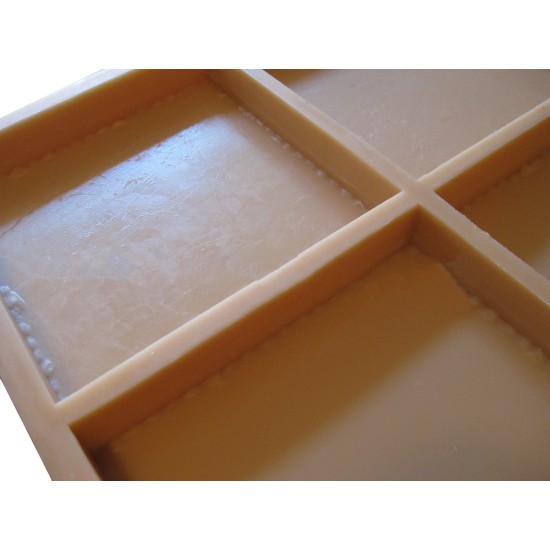

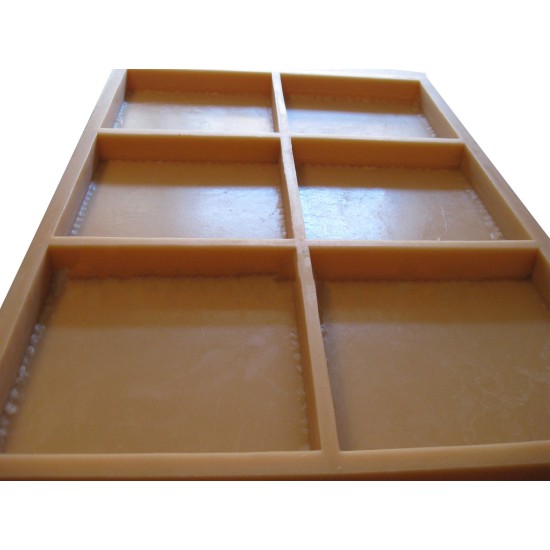

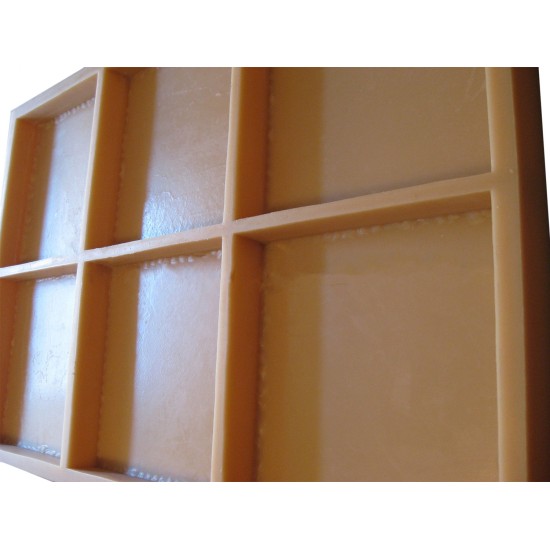

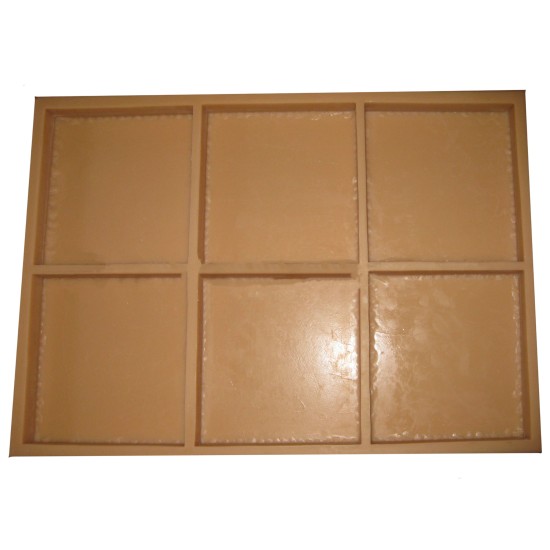

Stepping Stone Mold SS 5601/4

Mold size — 3.22 SQ.FT.(0.3m2) approximate. Measurements - 25” X 17” X 2” (63cm X 43cm X 5cm)

Mold sections — 6

Section dimensions: Approx. size of each section 8” X 8”X 1 1/2" (20cm X 20cm X 4cm).

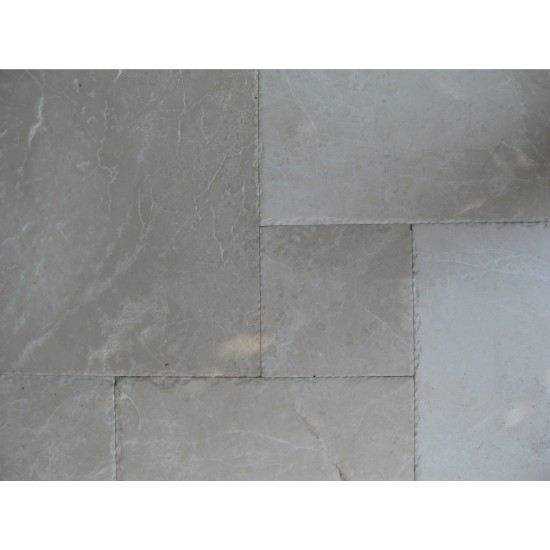

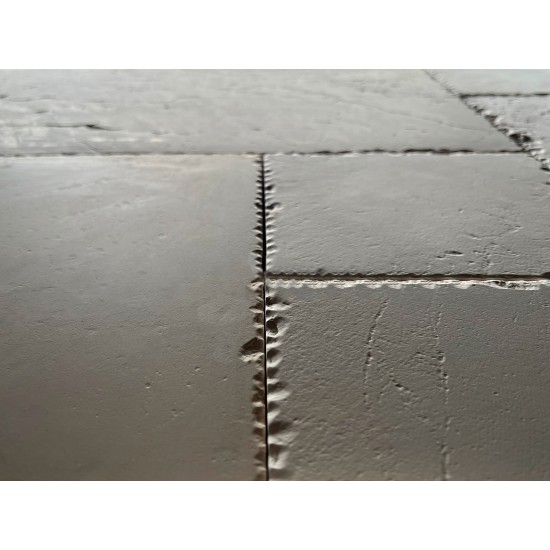

There are different mold models but it is the same Mold style. If you use them together, your pattern will not repeat itself.

  SS 5601/1, 5601/3, 5601/4 Stone-casting Instructions:

Always apply release agent to your mold prior to casting concrete.
SS 5601/1, 5601/3 5601/4 mold casting weight is about 33.24 lbs. (15.09 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
11.08 lbs (5.03 kg) Portland cement (white for light stone colors, gray for dark stone colors)
22.16 lbs (10.06 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
44.31 oz (1.21 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
1.77 oz (50.3g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the  selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours

  SS 5601/2 Stone-casting Instructions:

Always apply release agent to your mold prior to casting concrete.
SS 5601/2 mold casting weight is about 22.16 lbs. (10.06 kg.)
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland cement to 3 parts sand [filler], but plasticizer and water has to be re-calculated by cement weight)
7.39 lbs (3.35 kg) Portland cement (white for light stone colors, gray for dark stone colors)
14.77 lbs (6.71 kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose" sand works great)
29.54 oz (0.8 L) Water (We recommend water to be 20%-30% of cement weight.) (If your mix is too liquid, use less water.)
1.18 oz (33.54 g) Super-plasticizer (Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments to your mix prior to adding the water. Mix concrete with pigment and additives for a few minutes, then add water (mix at least 3-5 minutes). You can also add Super plasticizer to the water 10-15 minutes prior to casting, then mix with dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the  selected sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold in 12-24 hours
