Castle Stone Mold CS 3001, 28" x 24"
Rubber molds have the abrasion resistance and tear strength needed to keep production moving. Casting concrete into rubber molds lets you make perfect copies of any original every time! Molds are ready for casting same day and last in production...saving you time, labor, and material costs. Urethane molds are used everyday by professionals to make architectural elements, concrete stone veneer, formliners, concrete countertops, GFRC panels, concrete statues and furniture and the list goes on. These molds can be used over and over.

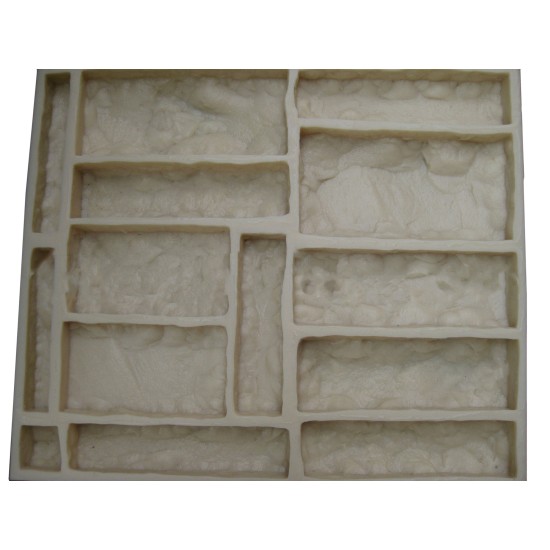

Castle Stone Mold CS 3001/1
Mold size 4.66 SQ.FT(0.43m2) approximate.
Measurements - 28" X 24" X 2 1/2" (71cm X 61cm X 6cm)
Mold's sections — 14.
Section dimensions: 1 1/2" to 2" (4-5cm) thick and the individual sizes
from 12" x 6" (30cm X 15cm) largest
to 2 1/4" X 2 1/4" (6cm X 6cm) smallest.

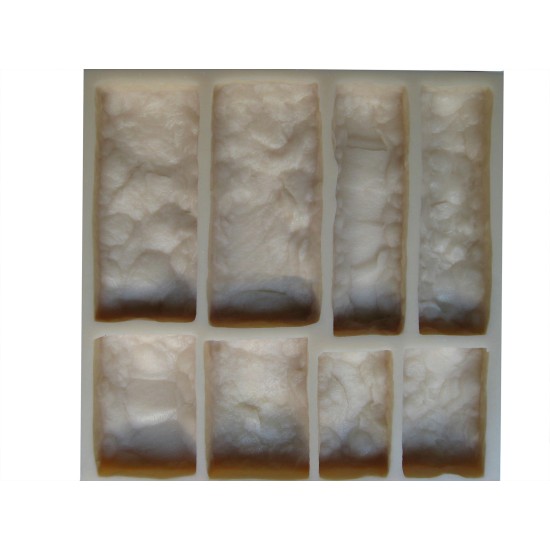

Castle Stone Mold CS 3001/2
Mold size 4 SQ.FT(0.37m2) approximate.
Measurements - 24" X 24" X 2 1/2" (61cm X 61cm X 6cm)
Mold's Sections — 8.
Section dimensions: 2 1/4" (5.7cm) thick
The individual sizes are: 7 1/2"x 5"(19cm x 12.7cm), 7"x 4 1/2"(17.8cm x 11.4cm),
8"x 6"(20.3cm x 15.2cm), 8"x 6"(20.3cm x15.2cm), 13"x 6"(33cm x 15.2cm),
13 1/2"x 6"(34cm x 15.2cm),14"x 4"(35.5cm x 10cm),14"x 4"(35.5cm x 10cm)

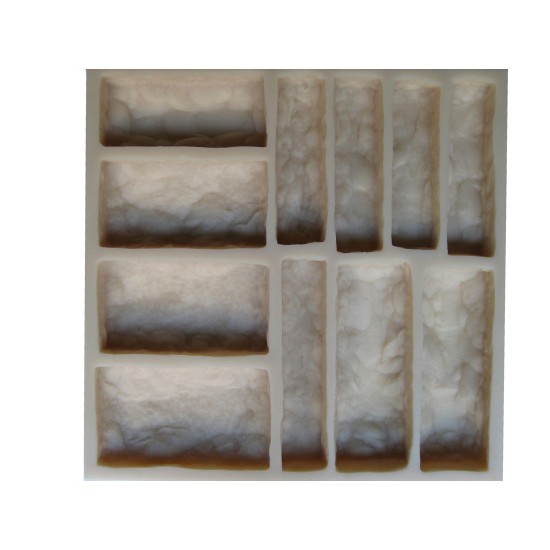

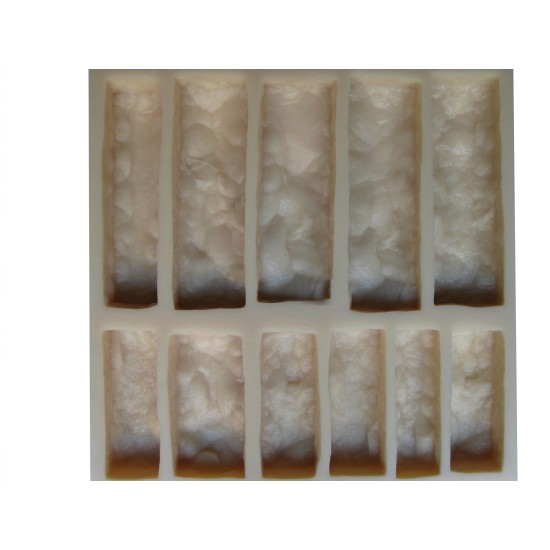

Castle Stone Mold CS 3001/3
Mold size 4 SQ.FT(0.37m2) approximate.
Measurements - 24" X 24" X 2 1/2" (61cm X 61cm X 6cm)
Mold's Sections — 11.
Section dimensions: 2 1/4" (5.7cm) thick
The individual sizes are: 8"x3"(20cm x 7.6cm), 8.5"x3"(21.6cm x 7.6m),
8"x 3"(20cm x 7.6cm), 8"x 3"(20cm x 7.6cm), 8" x 4"(20cm x 10.6cm), 8"x 3"(20cm x 7.6cm)
13"x 4"(33cm x 10cm),13"x 4"(33cm x 10cm),13"x 4"(33cm x 10cm), 13"x 4"(33cm x 10cm)
13"x 3"(33cm x 7.6cm)

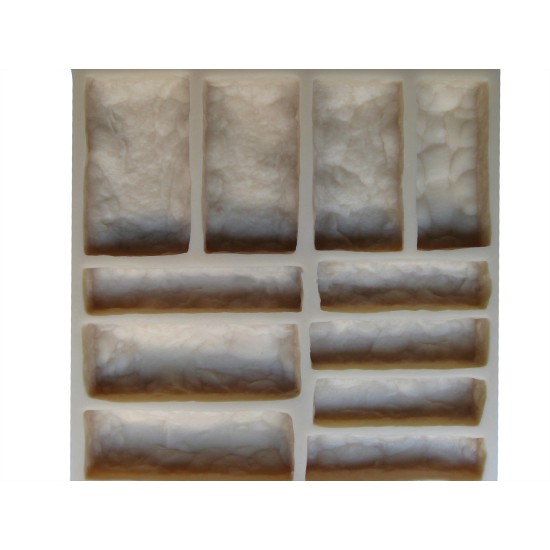

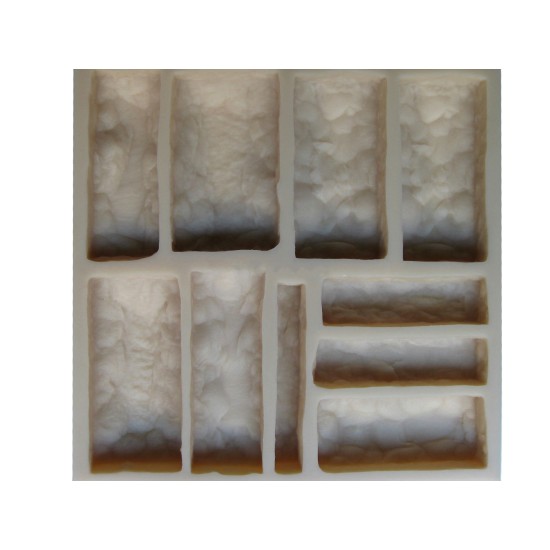

Castle Stone Mold CS 3001/4
Mold size 4 SQ.FT(0.37m2) approximately.
Measurements - 24" X 24" X 2 1/2" (61cm X 61cm X 6cm)
Mold's Sections — 10.
Section dimensions: 2 1/4" (5.7cm) thick- approximately
The individual sizes are: 7"x 6"(17.5cm x 15cm), 7"x 6"(17.5cm x 15cm),
7"x 3"(18cm x 7.6cm), 7"x 2"(18cm x 5cm), 7"x 3"(18cm x 7.6cm), 14 1/2"x 3"(37cm x 7.6cm)
14 1/2"x 3"(37cm x 7.6cm),14"x 4"(35.5cm x 10cm),14"x 5"(35.5cm x 12.5cm), 14"x 4"(35.5cm x 10cm)

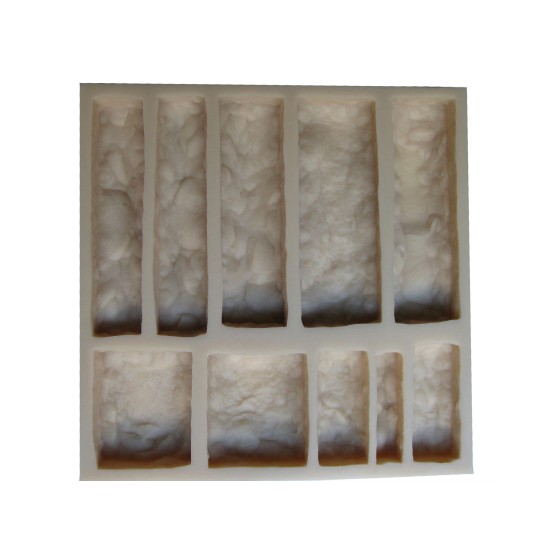

Castle Stone Mold CS 3001/5
Mold size 4 SQ.FT(0.37m2) approximately.
Measurements - 24" X 24" X 2 1/2" (61cm X 61cm X 6cm)
Mold's Sections — 10.
Section dimensions: 2 1/4" (5.7cm) thick- approximately
The individual sizes are: 10 1/2"x 4"(27cm x 10cm), 10"x 6"(25.5cm x 15cm),
10 1/2"x 5"(27cm x 12.5cm), 10 1/2"x 5"(27cm x 12.5cm), 11"x 5"(28cm x 12.5cm), 11"x4"(28cm x 10cm)
10 1/2"x 2"(26cm x 5cm), 9 1/2"x 3"(23.5cm x 7.5cm), 10" x 3"(25.5cm x 7.5cm), 10"x4 1/2"(25.5cm x 11cm)
Castle Stone Mold CS 3001/6
Mold size 4 SQ.FT(0.37m2) approximately.
Measurements - 24" X 24" X 2 1/2" (61cm X 61cm X 6cm)
Mold's Sections — 11.
Section dimensions: 2 1/4" (5.7cm) thick- approximately
The individual sizes are: 6"x 10"(15cm x 25.5cm), 10"x 5 1/4"(25.5cm x 13cm),
9 1/2"x5"(24cm x 12.5cm), 9 1/2"x 4"(24cm x 10m), 9 1/2"x 3"(23cm x 7.5cm), 10"x 3"(25.5cm x 7.5cm)
10"x 3"(25.5cm x 7.5cm), 10"x2 1/2"(25.5cm x 6cm), 12"x2 1/2"(35cm x 6cm), 12"x 4 1/2"(35cm x 11cm)
12"x 4"(35cm x 10cm)

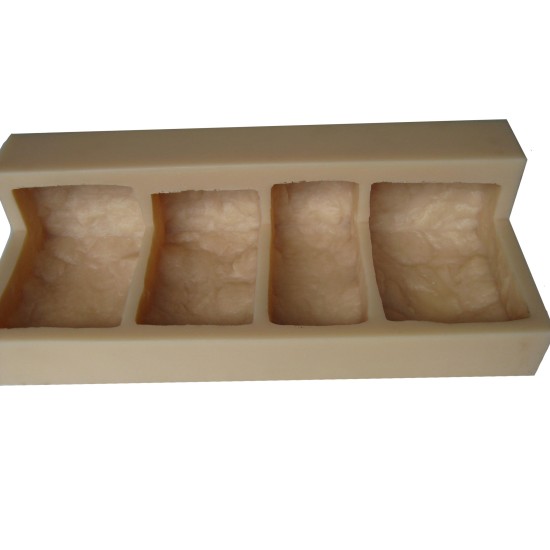

Castle Stone Mold CS 3001/7 Corner
Measurements - 24 1/2" X 10 1/2" X 6 1/2" (62cm X 27cm X 6.5cm)
Mold's Sections — 4.
Section dimensions: 6" x 9" x 5" (15 cm x 23cm x 13cm), 4" x 9" x 5" (10cm x 23cm x 13 cm), 5" x 9" x 4 1/2" (13cm x 23cm x 11 cm), 6" x 9" x 5" (15cm x 23cm x 13 cm).

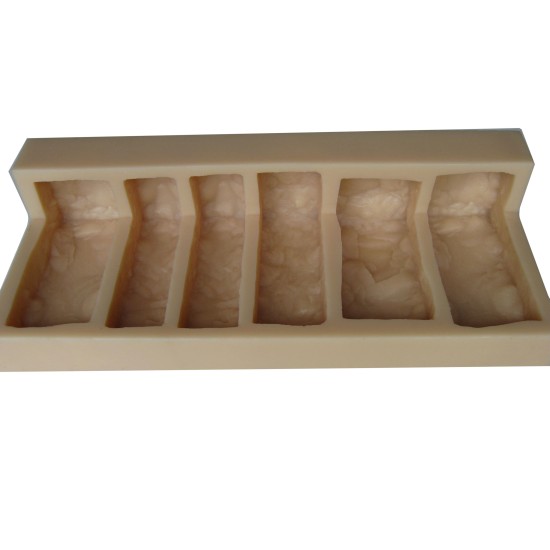

Castle Stone Mold CS 3001/8 Corner
Measurements -25 1/2" X 10 1/2" X 5 1/2" (65cm X 27cm X 14cm)
Mold's Sections — 6.
Section dimensions: 2 1/4" (5.7cm) thick- approximately
The individual sizes are: 4" x 9" x 4 1/2"(10cm x 23cm x 12cm), 4" x 9" x 4"(10cm x 23cm x 10 cm),
3" x 9" x 4 3/4" (8cm x 23cm x 12 cm), 2.5" x 9" x 4 1/2" (6cm x 23cm x 12 cm), 2 1/2" x 9" x 4 1/2" (6cm x 23cm x 12cm), 4" x 9" x 4 1/2" (10 cm x 23 cm x 12 cm)
CS 3001/1-3001/6 Stone-casting Instructions:
Always
apply release agent
to your mold prior to casting concrete.
CS 3001/2 mold casting weight is about 108.73 lbs. (49.37 kg.) *Weight varies by mold*
We use this 1:2 cement to filler ratio mix : (you can also mix 1-part Portland
cement to 3 parts sand [filler], but plasticizer and water has to be
re-calculated by cement weight)
36.25 lbs (69.02 kg) Portland cement (white for light stone colors, gray for dark
stone colors)
72.48 lbs
(32.91kg) Sand (20-30 mesh recommended. Silica sand or "all-purpose"
sand works great)
144.97 oz (3.94 L) Water (We recommend water to be 20%-30% of cement weight.)
(If your mix is too liquid, use less water.)
5.8 oz (164.57 g) Super-plasticizer
(Superplasticizer's dosage rate is 0.5% -1% of cement weight. We are using 1%)
For best result always add dry pigments
to your mix prior to adding the water. Mix concrete with pigment and additives
for a few minutes, then add water (mix at least 3-5 minutes). You can also add
Super plasticizer to the water 10-15 minutes prior to casting, then mix with
dry ingredients.
Please note: Concrete minimum mixing time is 3 minutes (it takes a few minutes
until Super Plasticizer absorbs into the cement and start reaction)
To color different molds sections, brush oxide pigment over the selected
sections, then cast the concrete.
Cover the mold with plastic while it is curing. Remove the stone from the mold
in 12-24 hours.
